ESA IUP-UXP |
|
| |
|
|
| |
ESA IUP-UXP is an advanced version of our earlier model ESA IUP-XP, which works through
a PC’s parallel port & USB port. It features a 48 pin universal pin driver and
an expandable TTL pin driver. It supports over 7000 devices including PAL, GAL, CEPAL,
EPLD, PEEL, MAX, MACH, PLSI, EPROM, MPU /MCU etc. ESA IUPUXP works in various operating
systems, Windows 9x/NT/2000 and XP.
Data Sheet
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
ESA GP8-XP
|
|
| |
|
|
| |
The ESA GP8-XP is a PC's parallel-port-based gang programmer. It features 8 pcs fully
isolated 48-pin ZIF sockets, extremely high throughput, standard 5V and 3V chip support,
device insertion and continuity check. With PC-based design the device update through
software gives customer more flexible and quick access to the new chip support. The ESA
GP8-XP supports EPROM, EEPROM, FLASH in the introduction. Future software update will
include 87C5x, 89C5x , and PIC16Cxx microprocessor. The ESA GP8-XP has flexible design.
If customer has special chips that not in our standard support list, we provide a
special program that allow the ESA GP8-XP become a customize special chip production
gang programmer.
Data Sheet
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
ESA IUP - 48 UXP |
|
| |
|
|
| |
| ESA IUP-48UXP is an
advanced version of our earlier model ESA IUP-XP and UXP,
which works through a PC’s parallel port & USB port. It
features a 48 pin universal pin driver and an expandable
TTL pin driver. Support 5V and 3.3V low voltage devices,
1.8V chip support through low voltage adapter and Option
for universal adapter for 44-pin PLCC/ QFP/ TQFP/PSOP and
40/48 TSOP. ESA IUPUXP works on various operating systems,
Windows 98SE / ME / 2000 / XP/ Vista/ 718.1/10. |
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Turbo Gang Programmer (LabTool-848XP) |
|
| |
|
|
| |
| The ESA GP8-XP is a PC's USB
and parallel-port-based gang programmer. 8 independent
fully isolated 48-pin ZIF sockets, extremely high
throughput, standard 5V and 3V chip support, device
insertion and continuity check. With PC-based design
the device update through software gives customer more
flexible and quick access to the new chip support. The ESA GP8-XP supports
Universal adapters for
48TSOP/44PSOP/40TSOP Flash chips support. The ESA
GP8-XP has flexible design. |
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Serial Flash Programmer(LabTool-S100) |
|
| |
|
|
| |
The LabTool-S100 is PC
based USB interface serial flash programmer. Support
all serial flash chip from 512Kb upto 2Gb & packages
through adapters.
It works with internal USB power, don't need extra
power supply and support 3.3V to 1.8V Flash in VCC and
I/O and works on various operating systems, Windows
98SE / ME / 2000 / XP/ Vista/ 718.1/10.
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |

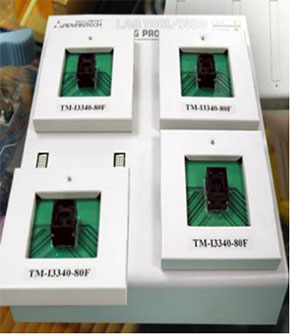

Turbo Flash Programmer (LabTool-T400) |
|
| |
|
|
| |
| LabTool-T400
Turbo Flash Gang Programmer is four sockets PC-based
Gang Programmer. It features four independent isolated
modules, extremely high speed in writing flash memory
chip. It supports 3.3V, 2.7V, 1.8V and 1.2V chip in
both VCC and I/O without low voltage converter and
handles 8/16/32 bit flash chip in different package
through adapter modules, up to 128Gb flash can be
support. The LabTool-T400 is an ideal programmer for
customers in GSM, 3G Mobile, PDA, Internet router and
others. |
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
