Starter Board

High-end emulator for professionals who need tracing, complex breakpoints, etc. This is a tool set that includes hardware and software tools for developing applications based on the AVR microcontrollers under control of one integrated development environment (IDE). A full package includes MCA-AVR macro assembler, PDS-AVR software debugger/simulator, PICE-AVR in-circuit emulator and ChipProg+ universal programmer integrated under control of the project IDE. The IDE with an embedded editor, project manager, MCA-AVR macro assembler and PDS-AVR software simulator is a common part of the Project package. This tool set provides a complete development cycle, from editing source texts, to getting debugged code, and "burning" it into a target microcontroller or memory device. Selected third parties' compilers can also be bundled with the Phyton's tools.

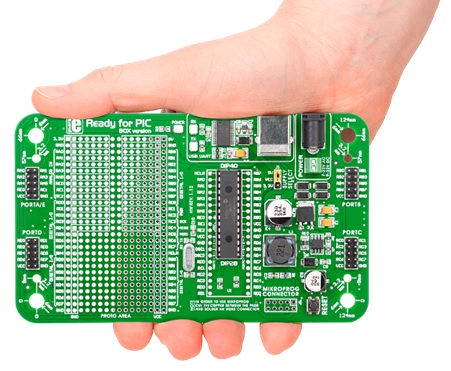

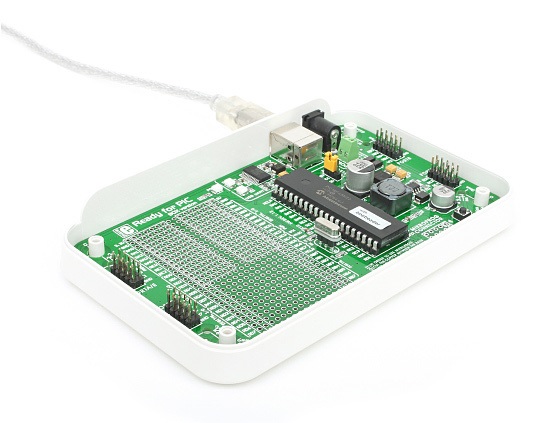

Ready for PIC Board is the best solution for fast and simple development of microcontroller applications using 28- and 40-pin PIC MCUs. It comes with PIC18F45K22 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.

PIC microcontroller on board

Now with PIC18F45K22

Ready for PIC comes with PIC18F45K22 microcontroller, which is a great choice for projects of both beginners and professionals.

Easy Programming

Bootloader inside

Having fast UART bootloader, this board is ready to rock right out of the box. No need for external programmers.

Ready for PIC (DIP28) Board is the best solution for fast and simple development of microcontroller applications using 28-pin PIC MCUs. It comes with PIC18F25K22 connected to 8MHz crystal oscillator. It contains four IDC10 headers for all available microcontroller ports, USB-UART module, prototyping area and a power supply circuit. Board is specially designed to fit into special white plastic casing which is sold separately.

Board comes preprogrammed with fast UART bootloader which eliminates the need for external programmers. Board also supports fast USB 2.0 mikroProg™ programmer with hardware In-Circuit Debugger.

TA USB supported prototype board for 40-pin dsPIC30F MCUs with IDC10 extension.The board is powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R that can be easily connects to a PC.

Description

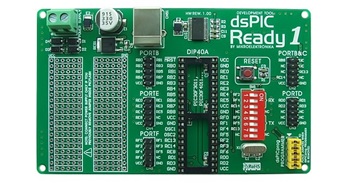

dsPIC-Ready1 Board provides the best solution for fast and simple development of 40-pin dsPIC30F microcontroller applications (dsPIC30F3011 and dsPIC30F4011). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-REady1 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

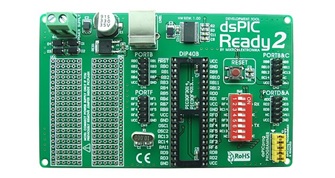

A USB supported prototype board for 40-pin dsPIC30F with IDC10 extension powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R easily connects to a PC.

Description

dsPIC-Ready2 Board provides the best solution for fast and simple development of 40-pin dsPIC30F microcontroller applications (dsPIC30F3014 and dsPIC30F4013). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-Ready2 Board features a USB to serial UART interface device FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

Overview

Description

dsPIC-Ready3 Board is the best solution for fast and simple development of 28-pin dsPIC30F microcontroller applications (dsPIC30F1010, dsPIC30F2020 etc.). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the bpard. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.
dsPIC-Ready4 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

Overview

A USB supported prototype board for 28-pin dsPIC30F microcontrollers with IDC10 extension.The board is powered by an external 8-16V AC/DC power supply connected via on-board connector. On-board USB to serial UART interface FT232R easily connects to a PC.

Description

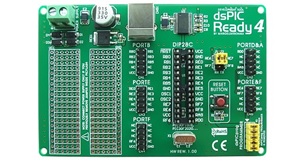

dsPIC-Ready4 Board is the best solution for fast and simple development of 28-pin dsPIC30F microcontroller applications (dsPIC30F2010, dsPIC30F3010, dsPIC30F4012, dsPIC30F2012, dsPIC30F3013 etc.). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-Ready3 Board features a USB to serial UART interface device FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

Note: Accessory Boards are sold separately.

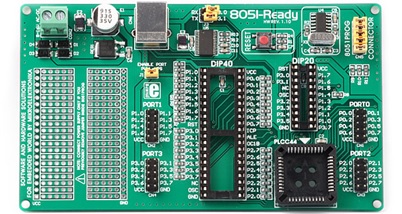

The 8051-Ready Board is the best solution for fast and simple development of 20-, 44-pin DIP and PLCC44 8051 microcontroller applications. It includes connectors for connecting the 8051prog2 in-system stand-alone programmer that enables you to program MCUs without any other additional device. There are also IDC10 connectors linked to the MCU pins provided on the board. These conectors enable numerous additional modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs. The board is powered by an external 8-16V AC/DC power supply connected via on-board connector.

This tool also contains a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by fully integrating an external EEPROM, USB termination resistors and an integrated clock circuit which requires no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more.

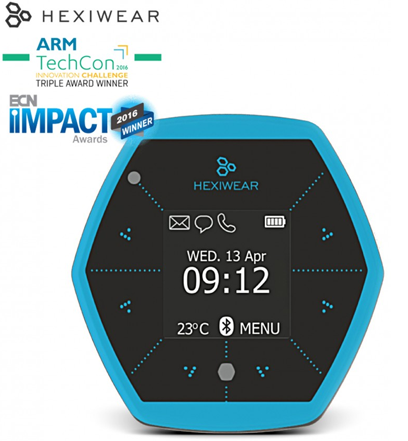

Hexiwear

Compact, wearable cool form factor Style and usability of a high-end consumer device in a dev kit. Efficiency and low power consumption. Powered by Kinetis K64 32-bit ARM Cortex-M4 MCU. Features several advanced NXP sensors. Equipped with Bluetooth Low Energy. Works with compatible iOS/Android apps. Connects to the cloud.

Compact, wearable cool form factor Style and usability of a high-end consumer device in a dev kit. Efficiency and low power consumption. Powered by Kinetis K64 32-bit ARM Cortex-M4 MCU. Features several advanced NXP sensors. Equipped with Bluetooth Low Energy. Works with compatible iOS/Android apps. Connects to the cloud.

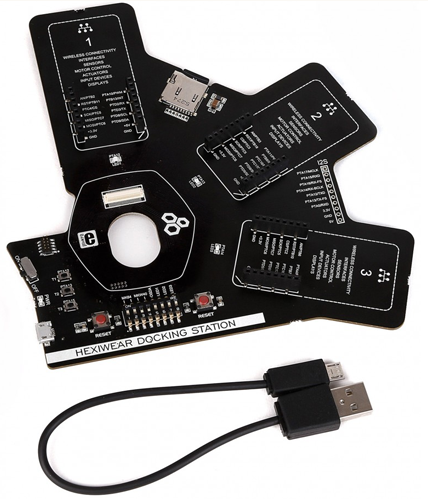

The Hexiwear Docking Station is for developers who want complete control over Hexiwear’s hardware. Expand Hexiwear with up to three click boards and turn it into something completely different. Upload new firmware through the USB port using the onboard OpenSDA programmer; or connect an external programmer to the Cortex Debug connector. Expand Hexiwear’s memory with an SD Card. Add audio capabilities using the I2S pinout. See full Documentation.

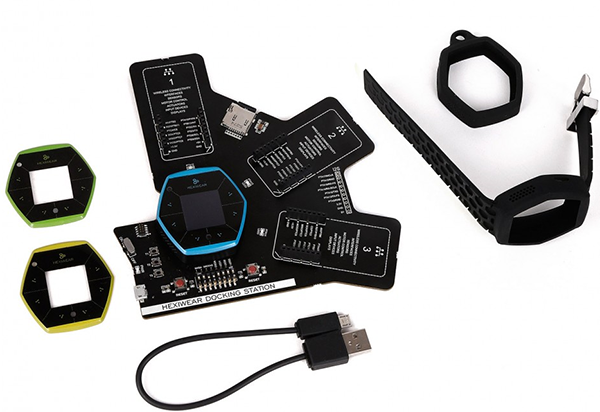

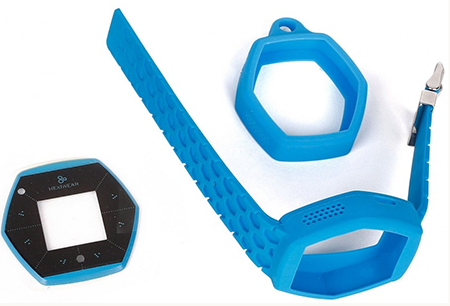

The Power User Pack will let you use Hexiwear to its fullest potential.  The Docking station will let you expand Hexiwear’s functionality with hundreds of additional sensors using click boards. You can turn it into a wearable in a second – either a smartwatch using the sporty wristband, or perhaps a keychain using the soft cover. A USB cable and top-glasses in two additional colors are also complete the package.

MCU Cards

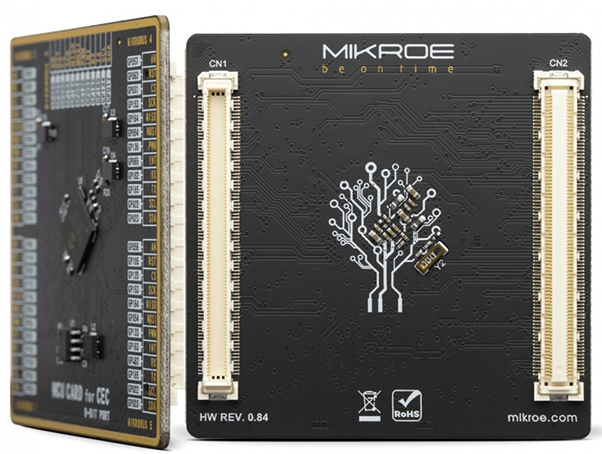

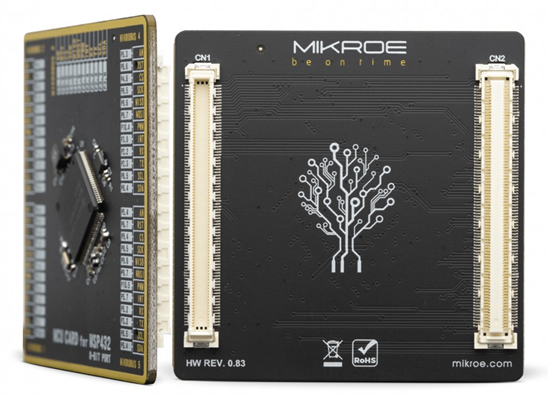

MCU Card is a standardized add-on board, which allows very simple installation and replacement of the microcontroller unit (MCU) on a development board equipped with the MCU Card socket. By introducing the new MCU Card standard, we have ensured the absolute compatibility between the development board and any of the supported MCUs, regardless of their pin number and compatibility. MCU Cards are equipped with two 168-pin mezzanine connectors, allowing them to support even MCUs with extremely high pin count. Their clever design allows very simple usage, following the well-established plug & play concept of the Click board™ line of product.

MCU Card is a standardized add-on board, which allows very simple installation and replacement of the microcontroller unit (MCU) on a development board equipped with the MCU Card socket. By introducing the new MCU Card standard, we have ensured the absolute compatibility between the development board and any of the supported MCUs, regardless of their pin number and compatibility. MCU Cards are equipped with two 168-pin mezzanine connectors, allowing them to support even MCUs with extremely high pin count. Their clever design allows very simple usage, following the well-established plug & play concept of the Click board™ line of product.
