SANBlaze Technology, Inc. is a pioneer in
storage testing and validation technologies.
SANBlaze systems are deployed in the test and
development labs of most major storage hardware
and software vendors worldwide.
SANBlaze is revolutionizing the SAN and Device
Driver markets by offering NVMe testing
end-to-end. They are first to market a solution
that tests Native NVMe and NVMe over Fabrics (NVMe-oF™)
for complete end-to-end testing of your entire
system using single port or dual port drives. |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
NVMe Testing |
|
|
|
|
|
The SANBlaze SBExpress full feature set provides
a unique set of functions applicable in all
aspects of a product lifecycle; from development
to design validation to test and QA. The ability
to drive NVMe SSDs with a wide range of
configurable attributes provides engineers with
a flexible, scalable tool to simulate real disk
and memory access environments and issues.
Development, qualification, and certification
test cycles can be highly automated, thus
reducing overall test time, and rapidly
surfacing errors and non-conformance. |
|
|
|
|
|
Gen6 SSD Testing |
|
|
|
|
|
|
|
|
The industry's first platform to support NVMe®
over PCIe® Gen6 validation and compliance
testing is now available.
The new SBExpress Rackmount Gen6 platform
provides a seamless upgrade path to Gen6. This
Gen6-ready platform provides broad test
capabilities for development, QA, validation,
and manufacturing teams. The new Gen6 platforms
include the company's Certified by SANBlaze (SBCert™)
compliance test suite, widely recognized as the
industry benchmark for all generations of NVMe
testing.

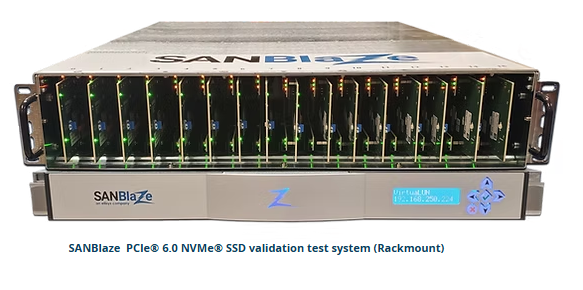

SBExpress-RM Rackmount PCIe Gen6 NVMe Test
System
The SBExpress-RM6 Rackmount is a 16-bay
enterprise-class NVMe test appliance supporting
PCIe speeds from Gen1 to Gen6. The SANBlaze
software IP for Gen6 is fully downward
compatible across all previous SANBlaze
generation platforms. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

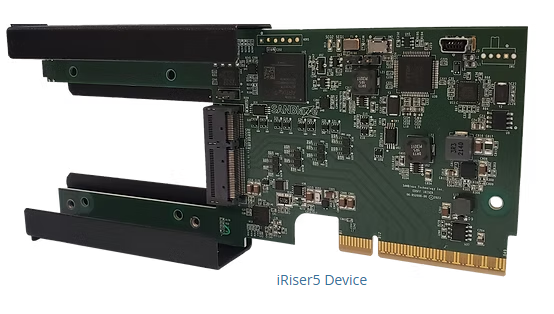

iRiser5 Intelligent Device |
|
|
|
|
|
The iRiser5 device brings precise signal control
and measurement to Gen5 PCIe NVMe testing with
the SANBlaze SBexpress-DT5 and SBExpress-RM5
PCIe NVMe test systems.
The patented SANBlaze iRiser5 can monitor drive
power at up to 1M samples per second, giving
near real-time power response as drives come
online and handle resets or power cycles.
Signals under control are timed at an 80nS
interval in relation to each other, giving the
user ultimate control over complex testing
scenarios, such as a drive reset at a specific
time after power is asserted.
The iRiser5 operates seamlessly with the
SANBlaze standard riser capabilities, such as
SRIS and Power state testing, losing no
functionality with the addition of the iRiser5
as an initial purchase, or post purchase as a
hardware upgrade. |
|
|
|
|
|
|
|
|
|
|
|
Technical Specifications |
|
|
|
|
|
- Precision control of PCIe/NVMe power and
control signals while continuously
monitoring the power of each device under
test (DUT)
- A sequence of events can be scheduled on
each signal line with up to 10 nanoseconds (nS)
glitch precision, with each event action
loading at 80nS interval to hours.
- Simple or complex sequences can be
defined and loaded to iRiser from the host
system.
|
|
|
|
|
|
|
|
|
|
|
|
SBExpress-RM5 |
|
|
|
|
|
The SANBlaze
SBExpress-RM5 is a complete turnkey PCIe® Gen5
NVMe SSD Drive validation test system. The
SBExpress-RM5 feature set provides unique
functions applicable to all aspects of a product
lifecycle, from development and QA, to design
validation and manufacturing test cycles.
The ability to drive Gen5 NVMe SSDs with a wide
range of configurable attributes provides
engineers with a flexible, multi-controller
supported validation test platform.
Development, qualification, and certification
test cycles can be highly automated, thus
reducing overall test time, and rapidly
surfacing errors and non-conformance.
The SANBlaze SBExpress-RM5 hardware provides a
rackmount chassis with sixteen dual or single
port front-accessible drives. |
|
|
|
|
|
 |
|
|
|
|
|
Software Features |
|
|
|
|
|
- Test coverage for all aspects of the
Version 1.4 IOL NVMe specification, as well
as support for the 2.0 version.
- NVMe-MI (Management Interface) testing
over SMBus
- Conformance Test Suite 7.0 with Dual
Port drive support SGL, SR-IOV, full
namespace control and reservations
- Drive multiple ports of traffic
simultaneously
- Read / write / compare testing
- Error injection
- Custom command builder
- Drive and test single or multiple NVMe
target device
- Send specific or custom op codes in an
easy to use scriptable format
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SBExpress-DT5CD Client Drive |
|
|
|
|
|
The SANBlaze
SBExpress-DT5CD (Desktop PCIe® Gen5 Client Drive
NVMe Test System) is a complete turnkey NVMe SSD
validation test system. With industry leading
Certified by SANBlaze automated testing, the
SBExpress-DT5CD brings Enterprise Class NVMe
validation testing for Client Drives, right to
the developer's desktop.
All attributes available through the SANBlaze
automated environment support Python, REST and
CLI/XML API control.
The "out-of-the-box" Certified by SANBlaze test
suite, or tests highly customized by your
engineering team, can be run from the engineer's
desk, providing a robust test environment for
finding issues before your customers do. |
|
|
|
|
|
 |
|
|
|
|
|
Highlights |
|
|
|
|
|
- Full Enterprise level Certified by
SANBlaze test suite with over 900+ built-in
tests qualification in a desktop enclosure
for Client Drives.
- Upgrade options available for OCP, FDP,
SPDM, VDM, and more
- Ability to run tests in the GUI and at
the Command Line Interface (CLI)
- L.1.1, L.1.2 ASPM power measurement
- iRiser5 with signal and glitching
- EDSFF to M.2 and U.2 and U.2 to M.2
adapters
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

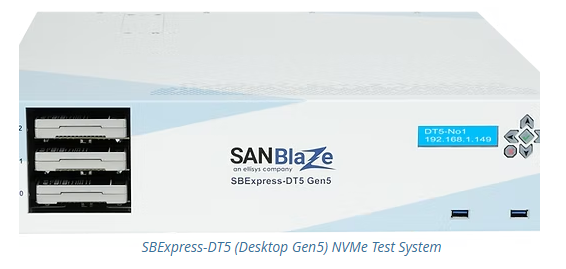

SBExpress-DT5 |
|
|
|
|
|
The SANBlaze
SBExpress-DT5 (Desktop, Gen5) is a complete
turnkey PCIe® Gen5 NVMe SSD validation test
system. With industry leading Certified by
SANBlaze automated testing, the SBExpress-DT5
brings Enterprise Class NVMe validation to the
developer's desktop.
The DT5 is 100% Software Compatible with the
SBExpress-RM5 sixteen device system. The DT5
provides features - formerly the exclusive domain
of the qualification and incoming inspection
teams - right to the engineer's desk. Using the
same Single/Dual Port U.2, M.2, and EDSFF/E3
risers as the 16-bay rack mount system, the desk
top DT5 packs the same enterprise class features
including ZNS,Opal/Ruby, SRIS, Specification
Validation, Power Control, Automated Scripting
and Python, XML and REST APIs as its big sister
the RM5. |
|
|
|
|
|
 |
|
|
|
|
|
Highlights |
|
|
|
|
|
- Enterprise class NVMe qualification in a
desktop enclosure
- 100% compatible with SBExpress-RM5 for
"Prototype to Production" scaling
- Priced for individual user, low overall
cost of ownership
- Plug and Play, testing in under five
minutes
- Quiet enough for home, capable enough
for the Enterprise
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OCP |
|
|
|
|
|
The Open
Compute Project (OCP) was formed to quicken
innovation for open-source hardware solutions in
hyper-scale data center environments. OCP
requires that Solid State Storage Drives (SSDs)
adhere to the OCP's NVMe Cloud SSD Specification
v2.0 or the newer Datacenter NVMe SSD
specification v2.5.
SANBlaze provides built-in software for testing
an OCP drive, which must be tested to a minimum
standard above and beyond the standard mandatory
NVMe features, as well as specifying minimum
reliability, thermal, endurance, management, and
form factor requirements. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

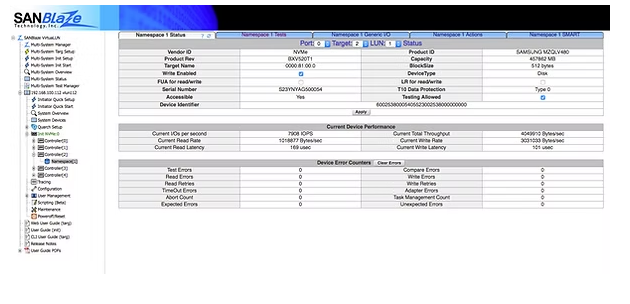

NVMe Express |
|
|
|
|
|
SANBlaze
VirtuaLUN NVMe Initiator is the key piece of
test equipment for anyone needing to test NVMe
target devices. The VirtuaLUN feature set
provides a unique set of functions applicable in
all aspects of a product lifecycle; from
development to design validation to test and QA.
The ability to drive NVMe targets with a wide
range of configurable attributes provides
engineers with a flexible, scalable tool to
simulate real disk and memory access
environments and issues. Development,
qualification and certification test cycles can
be highly automated, reducing time and surfacing
issues and errors. |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

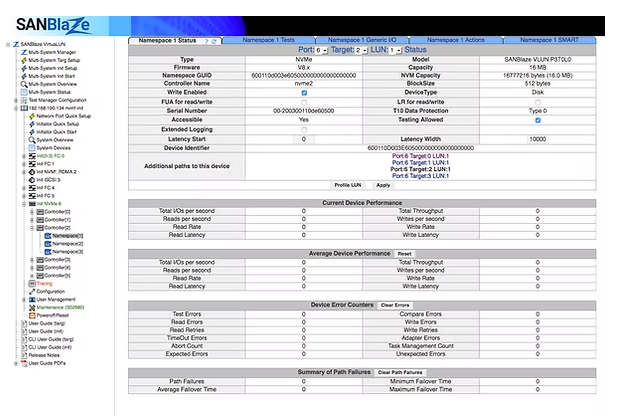

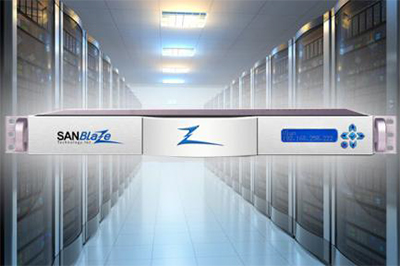

NVMe over Fabrics |
|
|
|
|
|
SANBlaze
VirtuaLUN storage emulation for NVMe over
Fabrics (NVMe-oF™) is the key piece of test
equipment for anyone developing products
supporting the NVMe-oF storage protocol using
Fibre Channel, RoCE/RDMA, and TCP/IP technology.
The VirtuaLUN feature set provides a unique set
of functions applicable in all aspects of a
product lifecycle; from development to design
validation and test and QA. The ability to
emulate NVMe-oF targets and initiators with a
wide range of configurable attributes provides
engineers with a flexible, scalable tool to
simulate real environments and test director
class switch environments at a fraction of the
cost of real devices.
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

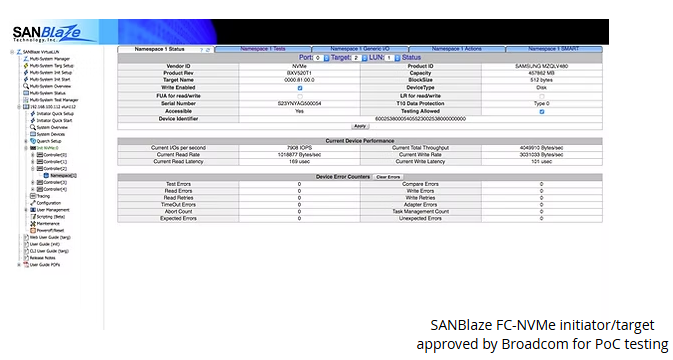

FC-NVMe |
|
|
|
|
|
SANBlaze
VirtuaLUN storage emulation for FC-NVMe is the
key piece of test equipment for anyone
developing products supporting the FC-NVMe
storage protocol. The VirtuaLUN feature set
provides a unique set of functions applicable in
all aspects of a product lifecycle; from
development to design validation and test and
QA. The ability to emulate FC-NVMe targets and
initiators concurrently with native FC targets
and initiators on the same wire with a wide
range of configurable attributes provides
engineers with a flexible, scalable tool to
simulate real SAN environments and test director
class switch environments at a fraction of the
cost of real devices.
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

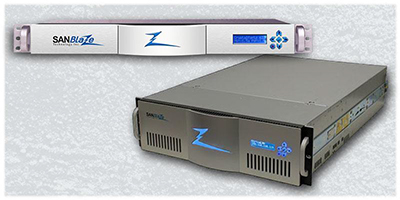

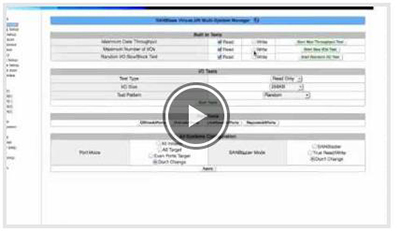

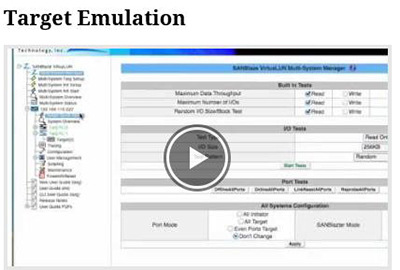

Initiator Testing and Target Emulation |
|
|
|
|
|
SANBlaze
Technology, Inc. is a pioneer in storage
emulation testing technologies and a leading
provider of storage, networking and
multifunction solutions for embedded systems.
SANBlaze emulation systems are deployed in the
test and development labs of most major storage
hardware and software vendors worldwide.
|
|
|
|
|
|
  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

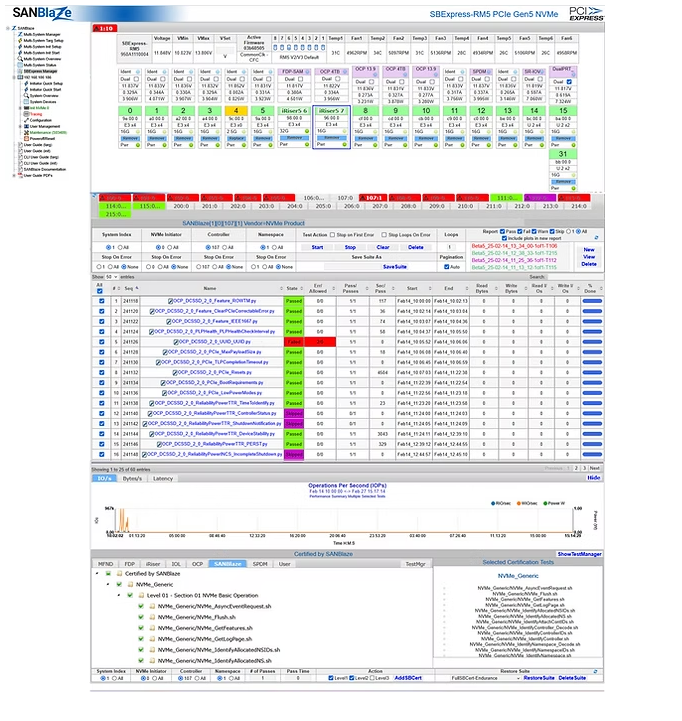

Certified By SANBlaze Scripts |
|
|
|
|
|
With the
Certified by SANBlaze program NVMe SSD
Manufacturers can run a series of automated
tests to determine if their drives are running
correctly and that they are compliant with the
latest specs. Alerts of Failures, Skipped or
Warnings are shown if one or more drives is not
behaving the way that it should, allowing for
the quick diagnosing of any problems before the
drives go out into the field.
The Certified by SANBlaze tests are bundled with
the software when customers purchase a SANBlaze
SBExpress-RM5 (rackmount) or an SBExpress-DT5
(desk top) unit. Simply choose the tests you
want to perform, add them to the test bed, and
click Start. The Certified by SANBlaze software
does the rest, reporting the results in
real-time and in beautifully-created reports.
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

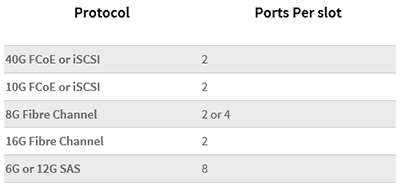

Protocols Supported |
|
|
|
|
|
SANBlaze
manufactures target and initiator emulators for
NVMe, FC-NVMe, NVMf, FCoE, Fibre Channel, SAS,
iSCSI and other storage protocols. Our highly
configurable systems are unique in their ability
to emulate actual storage devices. Our target
emulators allow you to create read/write drives
and tapes, control latency and configure error
conditions. Our initiator emulators behave as a
real initiator, not just a traffic generator or
protocol tester, providing real login and
command control.
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
Recent Developments |
|
|
|
|
|
Introduction of the industry's first NVMe Gen6
SSD test systems.
|
|
|
New SBExpress
Rackmount Gen5+ and Desktop Gen5+ are Gen6 Ready
to Deliver Latest-Generation Validation and
Compliance Testing
|
|
|
|
|
|
|
|
|
OCP 2.5 conformance testing software for NVMe
SSDs. |
|
|
The
Certified by SANBlaze tests are bundled with the
software when customers purchase an SANBlaze
SBExpress-RM5 or an SBExpress-DT5 desk top unit.
You simply choose the tests you want to perform,
add them to the test bed, and click Start. The
Certified by SANBlaze software does the rest,
reporting the results in real-time and in
beautifully created reports. |
|
|
|
|
|
|
|
|
|
|
|
|
|
