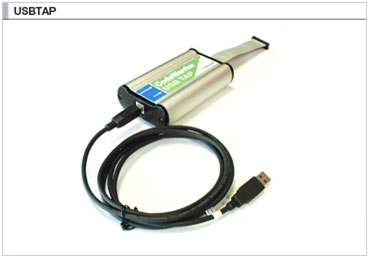

The CodeWarrior USB TAP host target interface is a
feature-packed, run control tool that allows developers to
save precious development time during target bring-up and
debugging. The USB TAP integrates seamlessly with the
CodeWarrior integrated development environment, giving the
developer a powerful tool for complex debug tasks and
providing excellent visibility into, and control of,
Freescale on-chip debug features. With the USB TAP, you
will have complete run control functionality and easy flash
programming for fast downloads and convenient production
testing.
Features

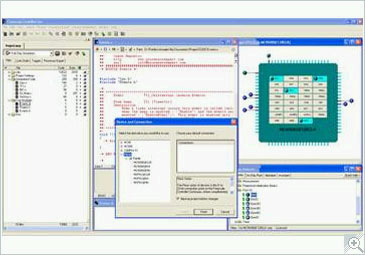

Classic IDE
Unlimited assembler
Unlimited C/C++ Compiler and Debugger (restrictions
based on suite)
Integrated Flash Programmer
Full Chip Simulation (RS08, S08 only)
Device Initialization tool
Processor Expert with basic, software and advanced
components (restrictions based on suite)
Processor Expert Component Wizard (restrictions based
on suite)
OSEK kernel awareness (restrictions based on suite)
Profile analysis (restrictions based on suite)
Code coverage (restrictions based on suite)
PC-Lint plug-in (restrictions based on suite)
USB TAP Features
High-speed USB 2.0 connectivity
Device is self-powered, requiring no external power
supply
Run-control visibility and control
Flash memory programming
Low-voltage target support
Fully integrated with CodeWarrior tools and supports
all CodeWarrior run-control debug features
USB 2.0 run-control emulator for target bring-up and
debug providing visibility into and control of Freescale
on-chip debug (OCD) features using On-Chip Emulation (OnCE)
communication protocol
Combines a powerful C/C++ symbolic debugger with an
integrated debugging interface to take advantage of all USB
TAP features
Debug code in ROM, RAM, and flash
Low-voltage processor compatible
Use detailed source-level trace to validate complex
code execution despite cache and pre-fetch operations
PC-Lint plug-in (restrictions based on suite)
Supported Devices
- PowerQUICC II (82xx)
- PowerQUICC II Pro (83xx)
- PowerQUICC III (85xx)
- QorIQ Communications Processors Value-Performance Tier
- QorIQ Communications Processors Mid-Performance Tier
- QorIQ Communications Processors High-Performance Tier
- MPC823E: PowerQUICC Integrated Communications Processor
for Portable Systems
- Archived Products and Tools
- Host and Integrated Host Processors (8xxx, 7xxx, 7xx,
6xx)
|
