Cosmic Software
|
|
|
|
|
|
|
|
| |
|
|
|
Cosmic Software provides
top quality development tools and services to manufacturers
who design and use microprocessors in their products. Many
leading companies trust Cosmic Software tools to develop
reliable high performance embedded software and boost
productivity. Our tools are easy to use and deploy, field
tested and thoroughly supported. We simply offer some of
the best tools in the embedded systems industry.
Cosmic's product portfolio includes: C-language
cross-compilers, assemblers, linkers, ANSI libraries,
processor simulators, hardware debuggers and an easy-to-use
integrated development environment (IDEA). Our tools are
available for PCs running Windows
and UNIX systems running PC-Linux
|
|
|
|
|
|
|
|
|
Cosmic Compilers Technology and IDEA
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Cosmic Software C
Compilers
|
|
| |
|
|
| |
Cosmic's C cross compilers are part of a complete and
uniform compiler product line incorporating over 20
years of innovative design and development. Cosmic's
familiar and easy to use software interface is common
through all supported microcontrollers to simplify the
learning curve and the migration between targets. All C
compilers include: |
|
| |
|
|
| |
- IDEA
Cosmic's own integrated development environment which is preconfigured for the
compiler it comes with.
- ANSI and ISO C Compiler
Cosmic compilers follow ANSI and ISO rules and conventions. Syntax extensions allow
to efficently use all processor specific features (zero page, peripherals, eeprom,
paged memory..) directly in C.
- Reentrant and Recursive
Most Cosmic Compilers are fully reentrant and recursive using standard ANSI stack
frame conventions.
- Library source code
Cosmic Compilers come with source code for all libraries provided.
- In-line Assembly
The compilers support three convenient methods for adding assembly code inside a C
program including an argument passing mechanism.
- Absolute Listings
Optionally produce relocatable and/or absolute C interspersed with the corresponding
Assembly listings.
- Windows, UNIX and Linux
Cosmic compilers are available on PCs running Windows (Windows 7, XP and compatible)
and UNIX systems running PC-Linux, SUN Solaris and HP-UX.
- Host Independent Formats
The Cosmic relocatable and absolute object formats are host independent. This allows
user's on PC Windows, Linux, SUN and HP to share objects for linking and debugging.
- IEEE-695 and ELF/DWARF
The Cosmic compilers support the IEEE-695 and ELF/DWARF 2.0 standard debug formats
used by many popular emulators and logic analyzers.
- C Interrupt functions and vector table
Interrupts can be managed entirely in C. The compiler takes care to save and restore
the necessary registers.
- Macro assembler
Supports C #defines and #includes so that C and assembly language modules may share
common constants and macros.
- Linker
Place the code in memory and take care of initializing global variables. Can also
generate automated checksums for most targets.
- Utilities
Librarian, hex file generator, object format converters, debugging support
utilities, multi-pass compiler command driver.
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|

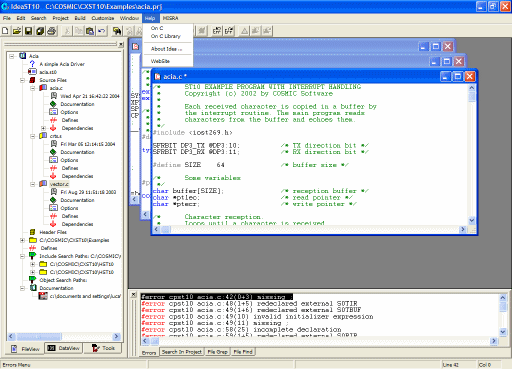

Cosmic Software Integrated
Development Environment
|
|
| |
|
|
| |
|
|
| |
|
|
| |
All Cosmic C Cross Compilers for Windows include IDEA -
Cosmic's own integrated development environment which is
preconfigured for the the compiler it comes with. IDEA
is designed specifically for developing embedded
applications with Cosmic compilers. IDEA integrates an
editor, project manager, graphical smart build/make
facility, program analyzer, link file generator,
documentation manager and ZAP debugger into one easy to
use environment running under Windows 7, XP and
compatible. IDEA includes the following features: |
|
| |
|
|
| |
- Integrated Windows Editor -
Windows 32 bit MS style editor with syntax
highlights for both C and assembly source.
- Project Manager - Convenient Project window provides easy access to the
most frequently used functions such as make, build,
touch, mark, compile, link and debug. The project
manager also supports Drag and Drop so you can
select and drag files from a Windows Explorer to the
project manager for easy setup.
- Program Analyzer - Intuitive Explorer style source file display - shows
compiler options, include file dependencies, file
build status, time and date of last edit, function
prototypes, command line defines, global and static
variables and documentation.
- Link File Generator - Flexible Link builder offers point and click
configuration of memory map.
- Graphical Smart Build - Configure Compiler and Linker to build only files
that
need to be rebuilt and run various compiler or user
defined utilities automatically. No need for
makefile.

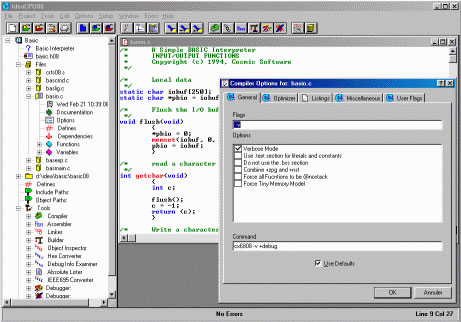

- Point and Click Options - IDEA provides an intuitive graphical setup for
compiler
and assembler options.
- Automatic Error Handling - When an error is found in a file just double
click on
the error and an editor window will open on that
file, at the line with the error.
- Global and local options - IDEA allows to set compiler and assembler
options both
at project and file level.
- Multifile functions - Search in the project files or other group of files
or
directories.
- Documentation Manager - Attach any documents or notes to your project or to
individual source files.
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
