Trace 32 PowerTrace
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

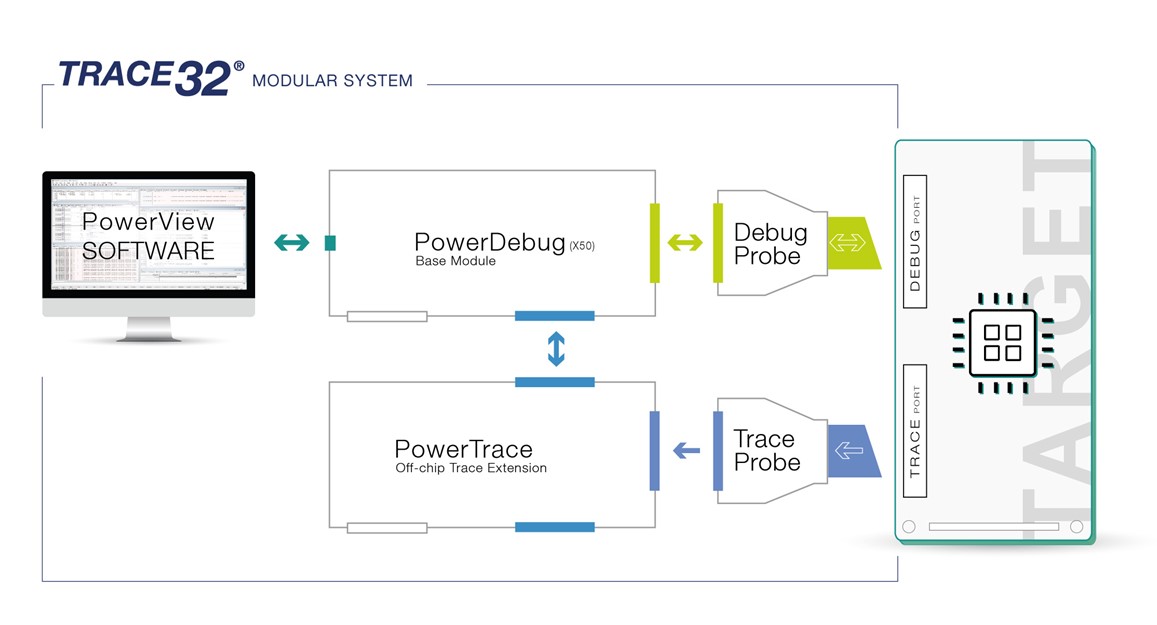

PowerTrace modules are extensions to the debug
module TRACE32 PowerDebug PRO. They provide the
memory for recording core, bus or system trace
information via parallel or serial trace ports.
Their super-fast memory controller guarantees: |
|
|
| |
|
|
| |
- Continuous recording of trace data even at very high
bandwidth.
- On demand, streaming of trace data to the host
computer.
|
|
|
| |
|
|
| |
|
Trace information is
timestamped (5 ns resolution) when stored. The
decoding of core trace data requires a suitable
license. All PowerTrace variants have PODBUS
Express interface to PowerDebug PRO that allows
a fast upload of the trace information to the
host computer.
|
|
|
| |
|
|
| |
PowerTrace II / III
|
|
| |
|
PowerTrace II / III
connect to the target via a TRACE32 Preprocessor.
|
|
|
| |
|
|
| |
|
|

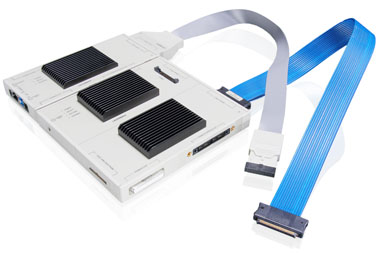

- TRACE32 AutoFocus II Preprocessor
Records trace information at a parallel trace port (up
to 32-bit). It is pre-licensed for a core trace protocol
at delivery. Licenses for additional core traces can be
added later.

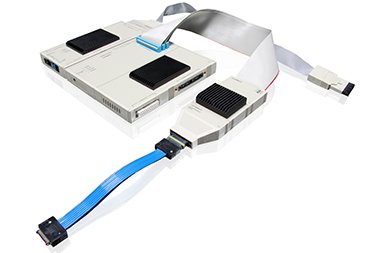

- TRACE32 Serial Preprocessor
Records trace information at a serial trace port that
uses an Aurora based protocol. Supported are up to 4 RX
lanes, each lane up to 6.5 Gbit/s.
|
|
|
| |
|
|
| |
|
The characteristics of the
individual PowerTrace II / III modules at a
glance:
|
|
|
| |
|
|
| |
| PowerTrace Serial 2 |
PowerTrace III |
PowerTrace II LITE |
CombiProbe 2 |
| 4 GByte or 8 GByte |
4 GByte or 8 GByte |
1 GByte |
512 MByte |
| High-performance serial tracing |
High-performance parallel tracing |
Parallel tracing |
Debugging and system trace |
| Max Bandwidth 80 Gbit/s |
Max Bandwidth 19.2 Gbit/s |
Max Bandwidth 10.8 Gbit/s |
Max Bandwidth 3.2 Gbit/s |
| 10 000 / 400 MByte/s Streaming |
2 400 / 400 MByte/s Streaming |
1 350 / 100 MByte/s Streaming |
200 / 140 MByte/s Streaming |
| Energy Profiling Via Mixed-Signal Probe |
Energy Profiling Via Mixed-Signal Probe |
Energy Profiling Not Available |
Energy Profiling Via Mixed-Signal Probe |
| PowerDebug X506 Module |
PowerDebug X506 Module |
PowerDebug X506 Module |
Any PowerDebug5 Module |
|
More...
|
More...
|
More...
|
More...
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
PowerTrace Serial
|
|
| |
|
|
| |
|
PowerTrace Serial records
and stores trace information at serial ports
that use an Aurora or PCIe 3.0 based protocol.
Supported are up to 8 RX/TX lanes, each lane up
to 12.5 Gbit/s. It is pre-licensed for a core
trace protocol at delivery. Licenses for
additional core traces can be added later.
|
|
|
| |
|
|
| |
|
The characteristics of PowerTrace Serial at a
glance:
- 4 GByte trace memory
- Maximum bandwidth of 100 GBit/s
- Support for TRACE32 Streaming up to 400 MByte/s
- TRACE32 Standard Probe included
(17 digital channels)
- More ...
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
