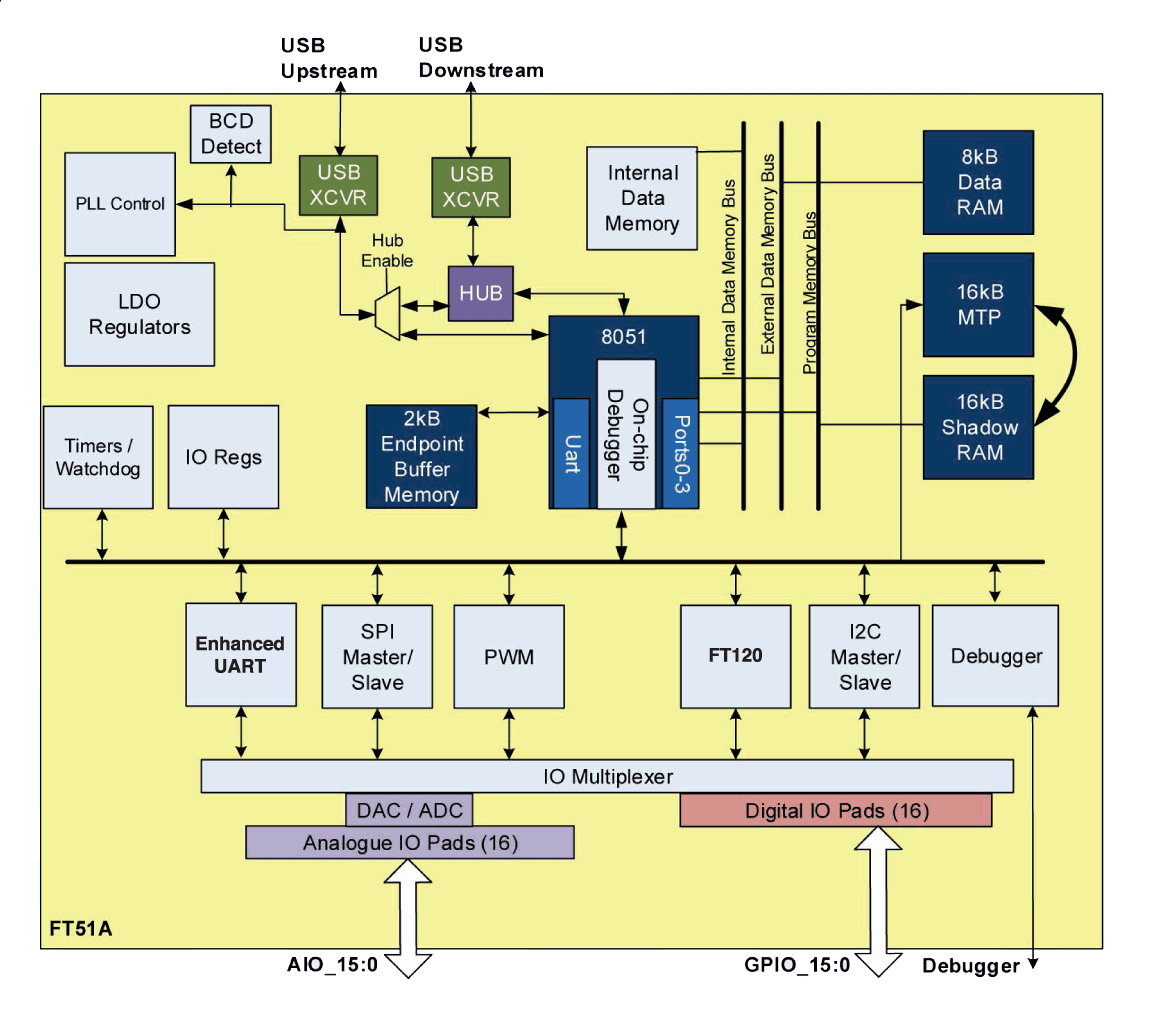

  FT51 - 8 bit 8051 Compatible Core

The FT51 with 8051 compatible-core offers outstanding performance with an extensive range of interfaces including DACs, ADC, PWM, SPI, USB peripheral and USB hub function. It is ideally suited for control of sensors / relays, which are becoming more common in the emerging 'internet of things' ecosystems.

Enhanced Digital features:

  • High speed operation of 48 MIPs at 48 MHz
  • 16KB program/shadow memory
  • True 0WS operation to 48MHz
  • 8 KB data memory
  • FT120 compatible USB 2.0 Full Speed peripheral, comparable to popular D12
  • USB Hub with downstream port
  • Enhanced UART with transfer rates from 300 to 6M baud
  • I2C master/slave controller

Enhanced Analog features:

  • 16 analog IO cells for ADC/DAC functions
  • USB DFU bootloader

Standard features:

  • SPI master/slave controller
  • Integrated clock generation, no external crystal required
  • Standard 8085 peripheral set
  • Event counter/timer with watchdog function
  • PB-free, RoHS packaging options: 24-pin SSOP, 32-pin WQFN, 44-pin LQFP and 48-pin WQFN packages

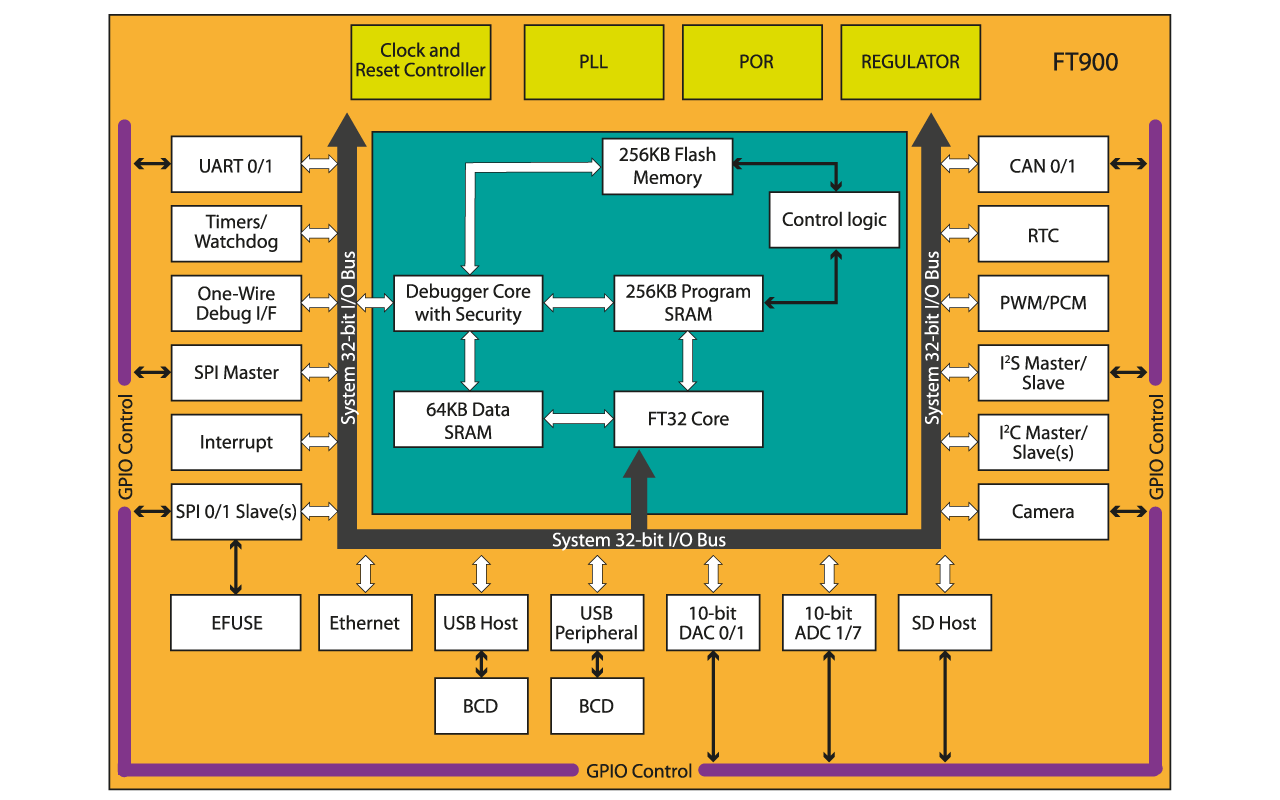

  FT900 - 32 Bit RISC MCU

With a parallel camera input, 10/100 base Ethernet interface, CAN bus, and USB2.0 Hi-Speed peripheral and host ports, the FT900 offers excellent interconnect capabilities and blazing computational power.

Enhanced features:

  • 32 bit RISC architecture
  • 256KB program/shadow memory
  • True 0WS at 100MHz providing 293 DMIPs performance
  • Integrated hardware debugger

Standard features:

  • Integrated PLL supports external crystal and clock source input
  • 32.768 KHz RTC support
  • Support battery charging specification for USB 2.0 peripheral port
  • PB-free, RoHS packaging 100QFN
  • 256KB program/shadow memory

Analog Connectivity:

  • 7 input channel muxed to single ADC
  • Supports two 10 bit DACs Digital Connectivity:
  • UART interface configured as 1 full UART or 2 basic UARTS(Tx/Rx/CTS/RTS)
  • Two I2C interfaces, master/slave with data rates up to 3.4 Mbps
  • Parallel camera interface
  • USB 2.0 Hi-Speed (480 Mbps) peripheral controller with Battery Charger Detection
  • USB 2.0 Hi-Speed (480 Mbps) host controller with BDC emulation
  • 10/100 Base-TX Ethernet MAC with MII interface, compliant with IEEE 802.3/802.3u standards
  • Two CAN 2.0 controller
  • I2S master/slave(24.57/22.57 MHz)
  • Host SD controller compliant with V3.0, supporting UHS50 and UHS104 cards
  • SPI master supports single/dual/quad modes
  • Two SPI slaves support single data transfer with 25 MHz clock
  • Supports 8 separate PWM channel outputs with support for PCM 8-bit/16-bit audio output
