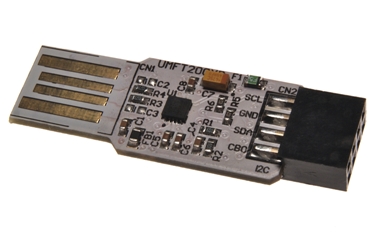

Breakout modules provide the simplest development hardware for the FT-X series of devices. To reduce cost the USB interconnect is simply tracking on the PCB which plugs directly into the USB host socket. The interface connector is a standard 0.1" pitch socket.

The module is ready to use when plugged in to enable instant development work to begin.

The range of modules available in

  • UMFT200XD: Support for the FT200XD USB to I2C device. Datasheet
  • UMFT201XB: Support for the FT201XQ USB to I2C device. Datasheet
  • UMFT220XB: Support for the FT220XQ USB to 4-Bit SPI/FT1248 device. Datasheet
  • UMFT230XB: Support for the FT230XQ USB to Basic UART device. Datasheet
  • UMFT234XD: Support for the FT234XD USB to Basic UART device. Datasheet



FT-X Development Modules

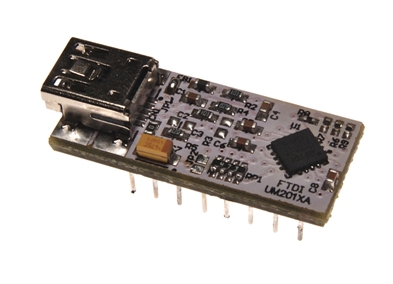

Development modules provide access to all the features of the utilised device.

  • UMFT201XA: Support for the FT201XQ USB to I2C device. Datasheet
  • UMFT220XA: Support for the FT220XQ USB to 4-Bit SPI/FT1248 device. Datasheet
  • UMFT221XA: Support for the FT221XQ USB to 8-Bit SPI/FT1248 device. Datasheet
  • UMFT230XA: Support for the FT230XQ USB to Basic UART device. Datasheet
  • UMFT231XA: Support for the FT231XQ USB to Full Handshake UART device. Datasheet
  • UMFT240XA: Support for the FT240XQ USB to 8-Bit FIFO device. Datasheet

  • UMFT201XE: Support for the FT201XQ USB to I2C device. Datasheet
  • UMFT221XE: Support for the FT221XQ USB to 8-Bit SPI/FT1248 device. Datasheet
  • UMFT231XE: Support for the FT231XQ USB to Full Handshake UART device. Datasheet
  • UMFT234XF: Support for the FT234XD USB to Basic UART device. Datasheet
  • UMFT240XE: Support for the FT240XQ USB to 8-Bit FIFO device. Datasheet






  FT12 Series Modules
  FT-X Breakout Modules

Complete evaluation and prototyping platform for FT12 series devices. The UMFT12XEV contains an LPC1114 controller to host the FT12X daughter card to enable testing of firmware for the FT12 series devices. Each device (FT120, FT121, and FT122) has a separate daughter card to plug-in to the UMFT12XEV and a mini-B USB connector for attaching to external USB host controllers.

Part Numbers (sold seperately):

  • UUMFT12XEV:: Evaluation Motherboard for evualuating the FT12X devices.
  • UMFT120DC:: FT120 Daughter card plug in for the UMFT12XEV
  • UMFT121DC: FT121 Daughter card plug in for the UMFT12XEV
  • UMFT122DC: FT122 Daughter card plug in for the UMFT12XEV


Datasheets can be downloaded from the links below:







  Hi-Speed Modules


The FT2232H Mini Module is a USB to dual channel serial/MPSSE/FIFO interface converter module based on the FT2232H USB Hi-Speed IC. The FT2232H handles all the USB signalling and protocol handling. The module provides access to device I/O interfaces via 2 double row 0.1" pitch male connectors. The module is ideal for development purposes to quickly prove functionality of adding USB to a target design.







  Vinculum Modules





Several modules demonstrating the capabilities of the new Vinculum IC are available, including DIP modules, add-on modules and dedicated application modules.

A quantity discount structure also makes these modules suitable for incorporation into low/medium volume finished product designs.







  FT232R Modules




A range of modules based on the FT232R IC are now available from FTDI and its distribution channels. These new modules include USB - RS232 converters, DIP modules and a mini-module only slightly larger than a USB connector.

These products allow customers to quickly evaluate the FT232R device and drivers prior to commencing their own design.







  FT245R Modules




Modules such as the UM245R basic DIP module can be
used to quickly evaluate the FT245R device before incorporating it into a design.







  Dip Modules




Dip Modules allow customers to quickly evaluate our devices and drivers prior to commencing their own design. Some modules simply incorporate the FTDI device and essential support components into a convenient DIP format, whilst others have an on-board microcontroller as well.

These modules are suitable for incorporating directly into low/medium volume product designs as they can plug into standard DIP sockets.







  USB - Serial Converters




USB to serial converters available from FTDI allow customers to quickly evaluate our devices and
drivers prior to commencing their own design.







  Engineering Tools & Instrumentation


Programming tools and test/measurement instruments based on FTDI's FT2232C USB UART/FIFO or FT245BM USB FIFO devices combined with FTDI's D2XX USB drivers







  Data Acquisition & Learning Tools


FT232BM and FT245BM based evaluation kits available from FTDI include USB to serial adaptors, temperature and humidity sensors, data acquisition boards, PIC development platforms, prototyping kits and learning kits.







  Wireless Modules




FT2232C, FT232BM and FT245BM based wireless networking modules and accessories. These RF transceiver modules are designed to enable wireless
networking within a home, office or factory environment by replacing the wiring typically found between a microcontroller/DSP/FPGA, etc. and host PC.

The DLP-RF1 and DLP-RF2 ZigBee ready transceivers have been granted modular approval. Under this approval, customer designs meeting a few basic requirements need not undergo additional regulatory agency (FCC, Industry Canada) transmitter testing.
