Aukua is committed to helping our customers deliver
reliable high performance solutions and services based on
IEEE 802.3bz technology. Our MGA2510 Ethernet test system
is the first solution capable of testing over the new
standards-based 2.5GBASE-T and 5GBASE-T Ethernet speeds.
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
Aukua MGA2510 Protocol Analyzer |
|
|
|
|
| |
|
|
| |
 |
|
|
|
|
| |

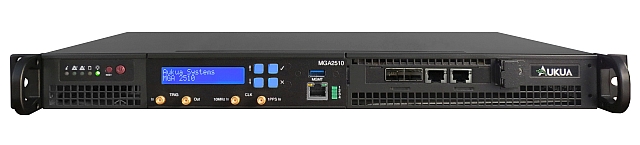

The Aukua MGA2510 Ethernet Protocol Analyzer is a
stand-alone 1U chassis system providing validation and
debug analysis capabilities for R&D, Test and Support
engineers building and deploying Ethernet based IT, storage
networking and communications systems.
|
|
| |
- Inline packet capture, L1 (PCS layer) bit capture,
protocol analysis, monitoring and impairment jamming
- Supports 100M to 10GbE rates including the first to
support IEEE 802.3bz 2.5GBASE-T and 5GBASE-T Ethernet
- First and only inline analyzer to support native copper
10GBASE-T! No need for troublesome media converters!
- Now supporting native 10.3125Gbps USXGMII visibility,
capture and impairments!
- Low latency inline (pass-through) operation
|
|
| |
| |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |

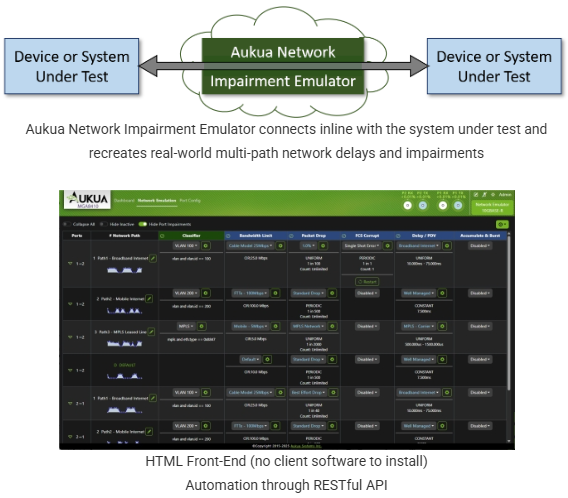

Aukua MGA2510 Network Impairment Emulator |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
Aukua MGA2510 Ethernet Network Impairment Emulators, also
called WAN Emulators, are used by our customers to
precisely recreate the delay, congestion, and packet or
link impairments found in all real-world data and storage
networks. Aukua Network Impairment Emulators are easy to
use, provide a repeatable test methodology and directly
help reduce risk and avoid business interruptions.
|
|
| |
- Validate voice, video, mobile or data application
performance under real-world network delay and congestion
scenarios.
- Accurately predict end user experience before deploying
a new cloud based service or migrating or relocating a
datacenter.
- Reduce mean-time-to-resolution (MTTR) by realistically
reproducing production network issues in the lab.
- Validate device and system functionality with a wide
variety of repeatable negative testing scenarios.
- Supports 100M to 10GbE rates including the first to
support IEEE 802.3bz 2.5GBASE-T and 5GBASE-T Ethernet
|
|
| |
| |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
Aukua MGA2510 Traffic Generator |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
The MGA2510 Aukua Ethernet Traffic Generator is an easy to
use purpose-built Ethernet test system for R&D, Test and
Support engineers for stressing, validating,
troubleshooting and debugging.
|
|
| |
- First 100M, 1G, 2.5G, 5G, 10G Multigigabit Ethernet
capable traffic generator and analyzer
- Bit Error Rate Testing (BERT), Throughput testing and
Latency measurement or monitoring
- PCAP Player enables precise playback of any pcap file
with time-based bandwidth control
- Impairment jamming for functional and performance
validation under real-world scenarios
- Hardware-based architecture with unequaled precision
and flexibility
|
|
| |
| |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
Automotive Solution |
|
|
|
|
| |
|
|
| |
Automotive Ethernet is paving the way for intelligent,
autonomous and connected vehicles. Aukua's test solutions
help verify system integrity and reliability, characterize
latency, perform functional and negative sting, capture
packets to speed up troubleshooting, and verify end to end
performance under real-world conditions.
|
|
| |
|
|
| |
Automotive Ethernet Testing
Aukua MGA2510
Consumers are demanding smarter, safer and more
connected vehicles. The pressure to deliver these
advanced infotainment, collision avoidance and driver
assistance features while maintaining costs has created
a tremendous challenge. In pursuit of these new
bandwidth hungry and latency sensitive devices or
applications, the automotive industry is moving rapidly
to adopt Ethernet's scalable and flexible networking
technology. Aukua Systems is working with leading
Automotive semiconductor companies, Tier 1 suppliers
and OEM Manufacturers to develop new test tools to help
them get to market faster, with less risk and with more
robust and competitive products.
 |
|
 |
|
|
| |
|
|
| |
Aukua's 3-In-1 Automotive Ethernet
Testing Solutions

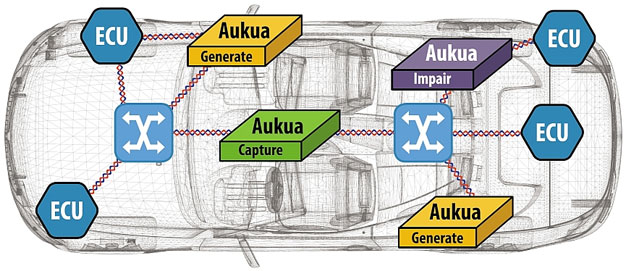

The Aukua MGA2510 platform supports three tools in one with
the ability to be an end-point traffic generator, an inline
analyzer for packet capture and visibility, or as an inline
network impairment emulator for limiting bandwidth,
inserting delay and adding impairments to verify
applications are robust enough to handle real-world
automotive network conditions.
|
|
| |
|
|
| |
Traffic Generator
Perform functional testing, throughput performance
testing, Bit Error Rate integrity testing and precisely
characterize latency of a device or system. |
|
Packet Capture and Analyzer
Transparently sit inline to capture packets, monitor
traffic in real-time, capture and troubleshoot hard to
find problems. Perform event timing correlation and
analysis. |
|
Network
Impairment Emulator
Application performance testing under real-world
bandwidth, delay and impairment conditions.
Realistically and repeatably reproduce real-world
issues for faster problem resolution. |
|
|
|
|
|
| |
 |
|
| |
Aukua Automotive Ethernet Test Solution
|
|
|
|
|
| |
Features :
- 100BASE-T1 (IEEE 802.3bw), 1000BASE-T1 (IEEE 802.3bp) interface rates

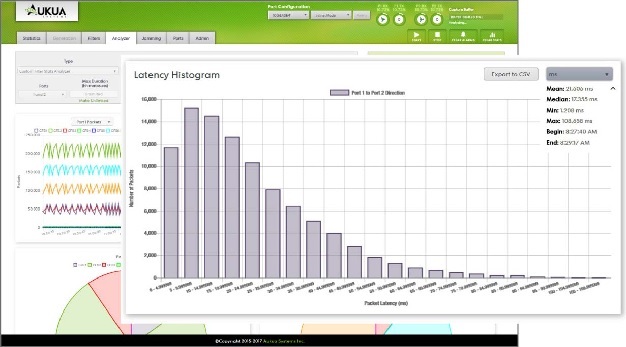

- Precisely Characterize Latency with 1ns precision
- Inline packet capture and Layer 1 PCS bit capture tools with powerful filter and trigger features
- Bit Error Rate Testing
- Create real-world delay, bandwidth limit and impairment conditions
- Real-time stats and graphical analysis
|
|
| |
 |
|
| |

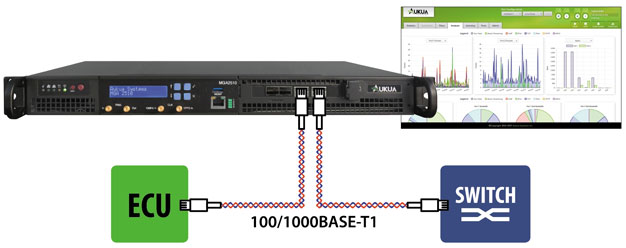

Aukua MGA2510 Automotive Ethernet - Example Inline Testing
Application for Capture Analysis, or Delay and Impairment
Emulation
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
