  Power Debug Pro


PowerDebug PRO as a successor of PowerDebug II provides the users with better user experience by integrating faster host interface and faster trace data upload. PowerDebug PRO as a debug module will then be connected to the target via architecture-specific debug cables, which support over 80 microprocessor architectures in use in the embedded-market.







Highlights



  • Support for over 80 microprocessor architectures, e.g. ARM, Cortex, Power Architecture, Intel x86/x64, etc.
  • Universal debug module, connect to target via architecture-dependent debug cables.
  • Connect to CombiProbe for debugging and 4-bit system trace.
  • USB3.0 or Gigabit Ethernet Interface to all hosts.
  • PODBUS and PODBUS Express interfaces to Logic Analyzer modules, e.g. PowerProbe, PowerIntegrator.
  • PODBUS Express interface to trace modules, e.g. PowerTrace PX and PowerTrace II for fast upload of trace data.
  • Trigger connector to send and receive trigger pulses.
  • Support for C667x.

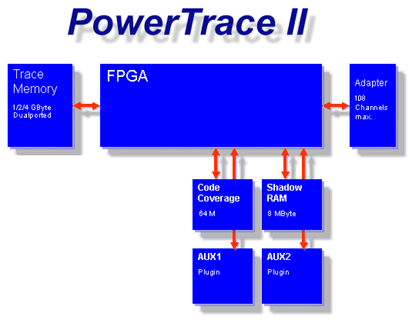

  Power Trace II


PowerTrace-II is the fastest trace available now. It is controlled by PowerDebug-II..






  • High speed Real Time Trace
  • Upload and full processing within 30 seconds per Gigabyte trace storage
  • Hardware breakpoints and trigger (if supported by the on-chip debugging unit)
  • Program and data flow trace
  • 1, 2 or 4 GByte trace memory
  • 500+ MHz effective sample rate with AUTOFOCUS-II self calibration
  • 16 GBit/s total trace port bandwidth
  • Statistic functions
  • Performance analysis
  • Code Coverage
  • Energy Tests (with optional Analog Probe)
  • Additional independent 17 channel logic analyzer
  • PodBusExpress interface to PowerDebug II (Host interface of PowerDebug II: USB2 and Ethernet 10/100/1000)
