  Carrier boards for the NVIDIA Jetson TX2 compute module


Model Supported Jetson USB Ports Ethernet Ports Cooling System Camers (MIPI) Other Interfaces
J90 TX2 2 1 Fan 2 CAN, 2x UART 2x I2C
J90-LC TX2 2 1 Fan 1 CAN, 2x UART 2x I2C
J94 TX2   2 1 Fan CAN, 2x UART 2x I2C
J100  TX2 2 1 Fan 4 CAN, SATA, PCIe x4, HDMI
J106 TX2 2 1 Fan 6 CAN, SATA, PCIe x4, HDMI
J120 TX2 3 1 Fan 1 CAN, 2x UA
J121  TX2 3 1 Fan 1 CAN, SPI, HDMI
J125 TX2 3 1 Fan 1 2x CAN, I2C, I2S, HDMI
J130 - 2k4k TX2 6 1 Fan 1 SATA, PCIe x4, CAN, HDMI
J130-NV TX2 6 1 Fan 1 SATA, PCIe x4, CAN, HDMI
J140 TX2 2 2 Fan 1 CAN, HDMI
J142 TX2 2 2 Fan 1 CAN, HDMI
J143 TX2 2 2 Fan 1 CAN, HDMI, POE
J180 TX2 2 1 1 2x CAN, I2C, I2S, HDMI
J220 TX2 2 1 Fan CAN, I2C, UART, HDMI



  J125 carrier board for TX2

	J125 carrier board for TX2

Technical specification
Aluminium case optionally supported
Power input 12V power in on JST GH
Size 50mm x 87mm

Technical specification
Compute modules NVIDIA Jetson TX2
MIPI CSI-2 1x 4 lanes
Ethernet GbE on JST GH connector
Micro USB 1x (up to 500mA)
Monitors 1x micro HDMI
USB 3.0 2x on FPC connector
Storage M.2 NVME PCIe x2 2242 SD slot
Wifi M.2 2230 Wifi card
SD card  SD card slot on bottom



Learn More Sales Enquiry
Scroll Top



  Jetson TX2 embedded and barebone systems

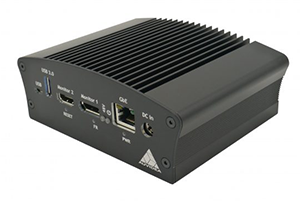

A dual Jetson TX2 version is in development. All versions of the TX2 are supported. The barebone system includes: J220(LC) carrier board, passively cooled aluminum case (135x109x50mm) and mounting material. With a small NRE charge the front plate may be customised.
  Jetson TX2 embedded and barebone systems


4 versions Compute module flashing service carrier
embedded system Jetson TX2 installed ready to boot
(OS installed)
J220
bare bone without compute module flash yourself J220



Add on modules Features
38363 4x USB 2.0 to 100bT Ethernet with 26W PoE PSE
4x Ethernet ports
3 connector options: RJ45, IX or JST-GH)
38372 2x M2 (LTE and WIFI) and 2x USB 2.0 JST-GH
38385 4x USB 2.0 type A
38391 dev kit camera module and 2x GbE (i210 – JST-GH)
38392 dev kit camera module, 1x GbE (i210 – JST-GH) and mini UPS controller (supercaps)


  The mini UPS controller supports 4 supercaps (25F to 70F) to power the unit up to a few minutes for a graceful power down in case of a power outage. The modules above may optionally be installed in the aluminum housing and the additional connectors are brought out on the back plate. These embedded systems are special order items. Please contact Auvidea sales for pricing and availability.

A power supply is optional. Please select one with 5.5/2.5mm power plug and the appropriate voltage and power rating.



Learn More Sales Enquiry
Scroll Top

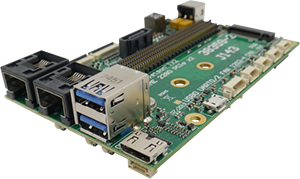

  J143-48 Carrier Board for the NVIDIA Jetson TX2   J143-48 Carrier Board for the NVIDIA Jetson TX2

The J143 is available in 2 configurations:

J143-48:

  • no PoE PSE: power in: 12V to 48V
  • PoE PSE: power in must be 48V
  • power in directly powers PoE PSE


  Changes from J140 to J143:

  • J143: 2x USB 3.0 with TX2 (J140: 2x USB 2.0 with TX2)
  • J143: M.2 NVME x2 (J140: M.2 NVME x4)
  • J143: up to 48V (J140: up to 12V)
  • J143: PoE PsE



Learn More Sales Enquiry
Scroll Top

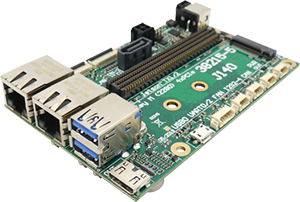

  J140 carrier for Jetson TX1/TX2

Jetson TX1/TX2 carrier with 2x GbE, 3x 4 lane CSI-2 and 2S Lipo battery backup (38215-5).

   	J140 carrier for Jetson TX1/TX2


Learn More Sales Enquiry
Scroll Top



  J120A-IMU/MCU carrier for Jetson TX1/TX2   J120A-IMU/MCU carrier for Jetson TX1/TX2

Jetson TX1/TX2 carrier (38198-9):

  • 1 x GbE
  • TX1: 2x USB 3.0, TX2: 1x USB 3.0 and 1x USB 2.0
  • 1 x CSI-2 (4n lanes)
  • 2 x UART
  • SPI/GPIO
  • MCU (for safe power up and down)
  • MPU-9250 (IMU)


  New features of the rev 9 version of the J120A:

  • auto flash (just plug in OTG USB cable and power up the TX1/2 - no need to press the recovery button)
  • UART0 bypass (console port for better compatibility)
  • fully dev kit firmware compatible

Note: Only 1x USB 3.0 and 1x USB 2.0 are available with the TX2. For 2x USB 3.0, please use the J121.



Learn More Sales Enquiry
Scroll Top



  J220 carrier for Jetson TX1/TX2

The J220 supports easy flashing (auto flashing). Just plug the USB OTG cable and the Jetson will automatically enter flashing mode. The J220 is firmware compatible to the TX2 dev kit. 2x HDMI (up to 4kp60), 2x USB 2.0, GbE, CAN, 6x CSI-2 (optional), power in 12 to 48V, PCIe optional, supercap option for graceful power down. (38338-2)
  J220 carrier for Jetson TX1/TX2


Learn More Sales Enquiry
Scroll Top



  ES-JNX80/ES-J180 embedded system for dual NVIDIA Jetson Nano/Xavier NX/TX2    ES-JNX80/ES-J180 embedded system for dual NVIDIA Jetson Nano/Xavier NX/TX2

Jetson Nano/Xavier NX/TX2 dual embedded system with integrated 5 port GbE switch. 2 HDMI and 2 USB 3.0 ports (one port routed to each module). 1 GbE RJ45 port as uplink. 2 GbE ports to each module plus 2 spare GbE ports for internal expansion.



  • 2 x JNX80 for NVIDIA Jetson Nano (ready for Xavier NX)
  • 2 x J180 for NVIDIA Jetson TX2
  • or mixed: with 1 x JNX80 and 1 x J180
  • optional with UPS supercap board

Note: the pictures show the prototype case with a 3D printed front plate. The production version will have an aluminum front plate. Availability: beta prototypes now, production version in March 2020.



Learn More Sales Enquiry
