Staying Ahead of the Curve: Meeting the Challenges of EV Power train Testing

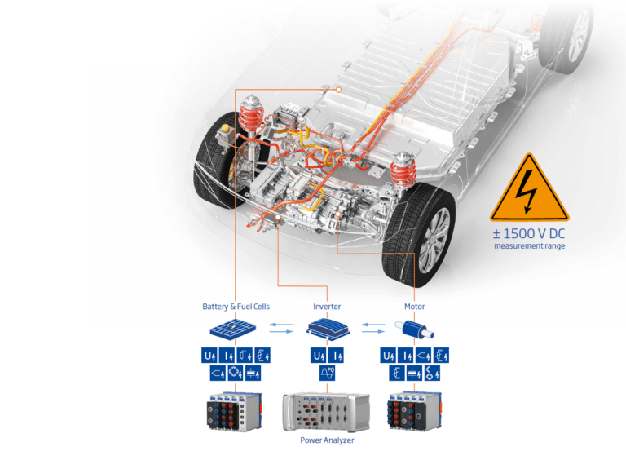

• Battery - Battery testing challenges involve ensuring capacity, efficiency, and performance under various operating conditions. This requires simulating different temperatures, charge-discharge cycles, and state-of-charge (SOC) levels. Additionally, battery aging and degradation testing is crucial to ensure the long-term reliability and safety of the battery.
• Inverter - Inverter testing challenges include ensuring proper motor control, assessing efficiency, and verifying the inverter’s ability to handle different load conditions. Testing the inverter’s thermal performance, protection features, and fault handling is also vital to ensure the overall reliability and safety of the powertrain.
• Motor - Motor testing challenges include assessing its efficiency, torque, and power output over a wide range of speeds and load conditions. Testing the motor’s cooling system, noise, vibration, and harshness (NVH) characteristics is crucial to ensure a smooth and comfortable driving experience.

• Harmonics and interharmonics - Electric vehicles introduce harmonics and interharmonics into the power system due to their non-linear components, such as converters and inverters. These distortions can cause interference, overheating, and malfunctions in sensitive equipment, ultimately affecting the overall power quality. Accurately measuring and analyzing harmonic and interharmonic content is crucial for identifying potential issues and optimizing power quality.
• Voltage fluctuations and flicker - EV charging stations, regenerative braking systems, and rapid load changes can cause voltage fluctuations and flicker in the power network. These variations can lead to instability in the power system, causing equipment malfunction or failure. Engineers must carefully monitor and measure voltage fluctuations to maintain the required power quality standards.
• Transient disturbances - High-frequency transient disturbances, such as voltage spikes or dips, can result from switching operations, fault conditions, or lightning strikes. These disturbances can cause severe damage to electronic components and affect the reliability of the powertrain system. Identifying and mitigating transient disturbances is essential for maintaining power quality and ensuring the safe operation of automotive systems.
• Unbalance and asymmetry - Power systems in electric vehicles may experience unbalance and asymmetry due to uneven load distribution or unequal impedance values in the system components. These conditions can lead to increased losses, reduced efficiency, and potential damage to equipment. Engineers must measure and analyze the unbalance and asymmetry in power systems to optimize power quality and ensure the longevity of the components.
• Reactive power and power factor - Reactive power and power factor are crucial parameters in assessing the efficiency of power systems. In electric vehicles, reactive power can be generated by inductive and capacitive loads, such as motors and converters. A poor power factor can result in increased energy losses and reduced system efficiency. Accurate measurement and analysis of reactive power and power factor are necessary to optimize the power system’s performance and minimize energy waste.

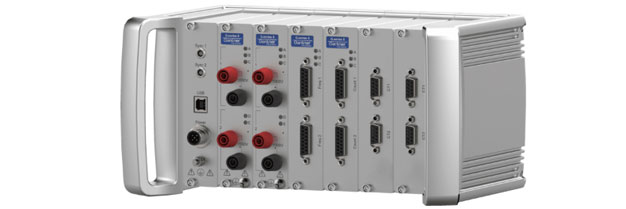

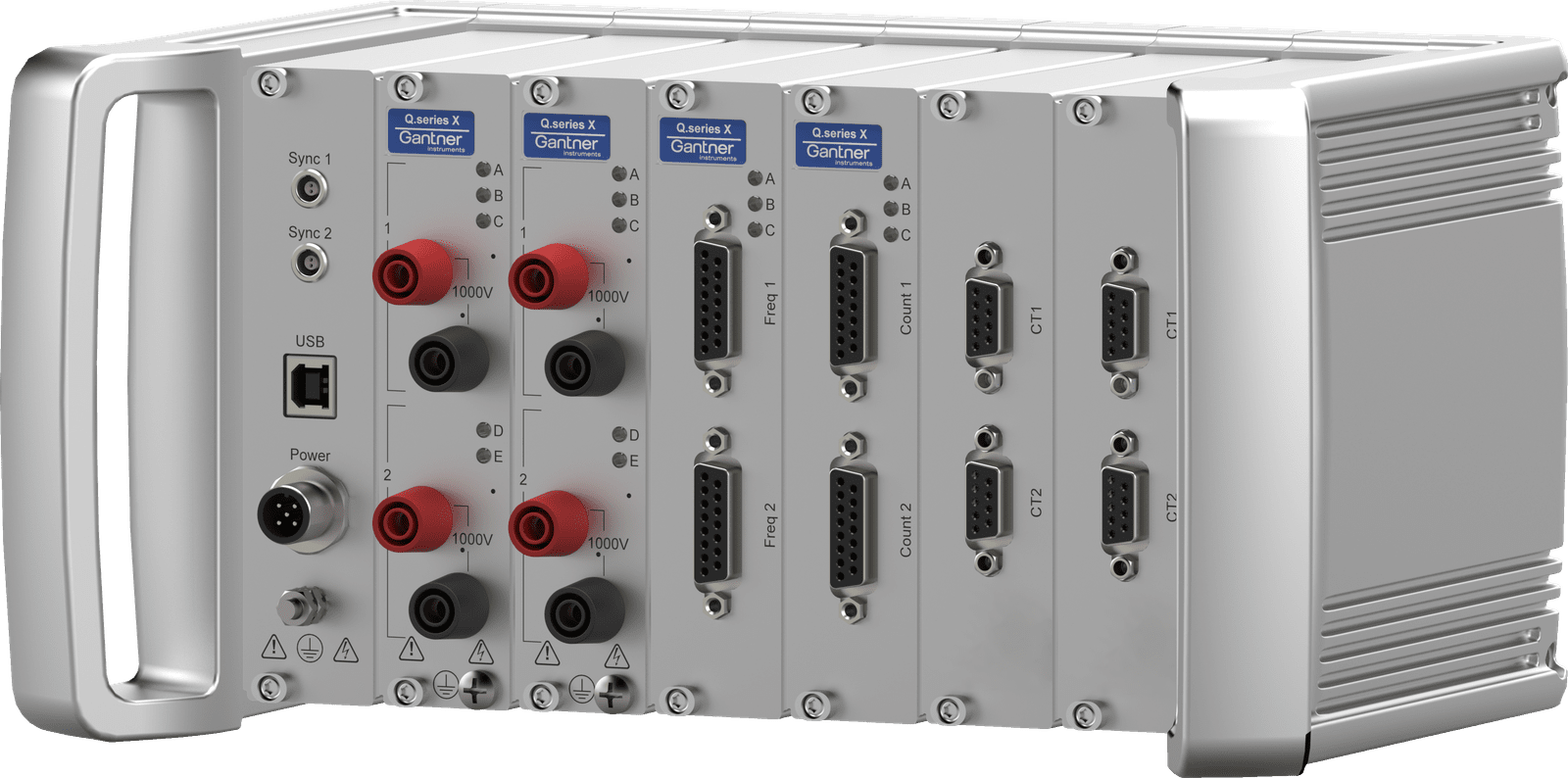

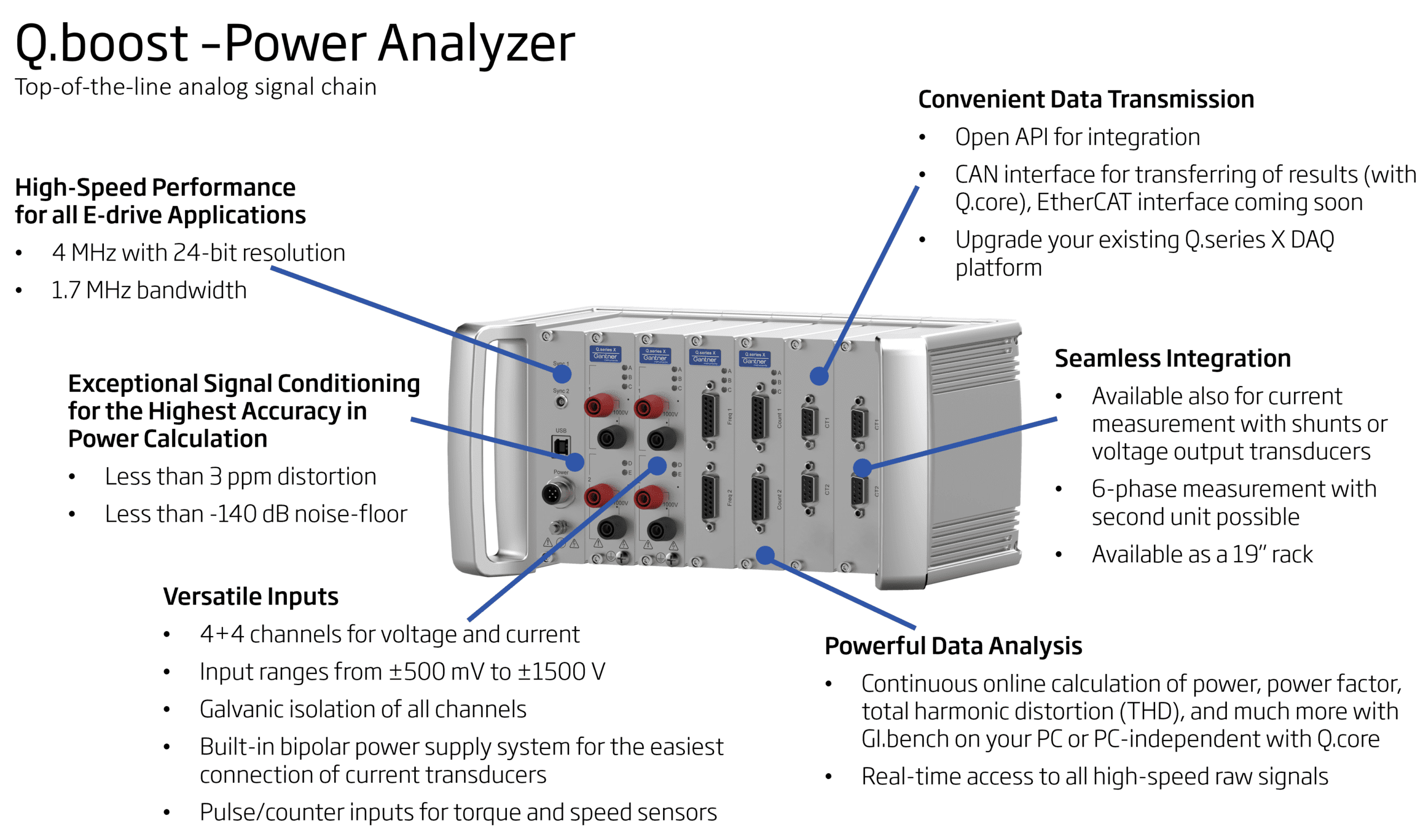

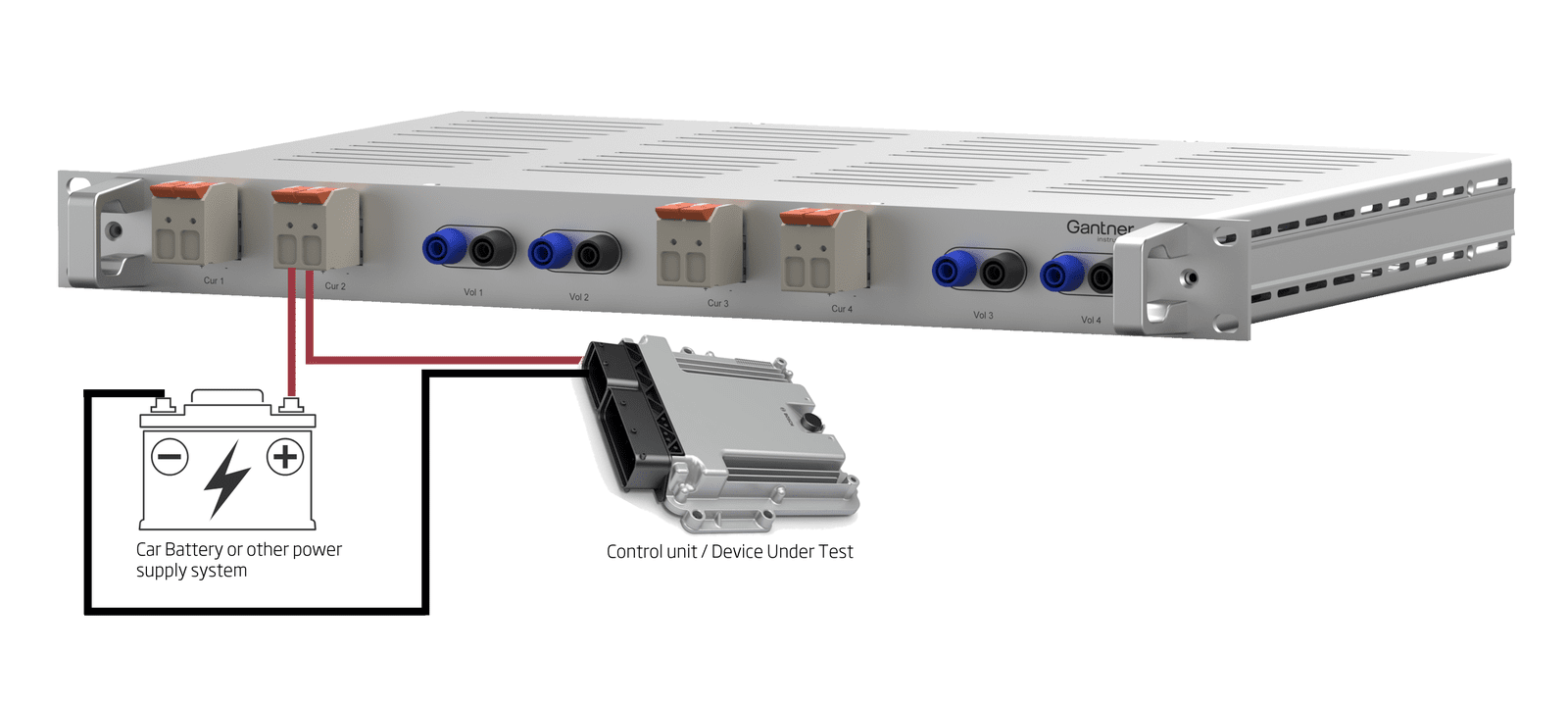

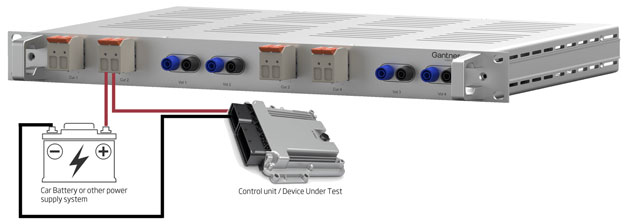

• High-resolution data - With its 4 MHz sampling rate and 1.7 MHz bandwidth, the Q.boost Power Analyzer provides engineers with high-resolution data for better analysis, system optimization, and power quality management.

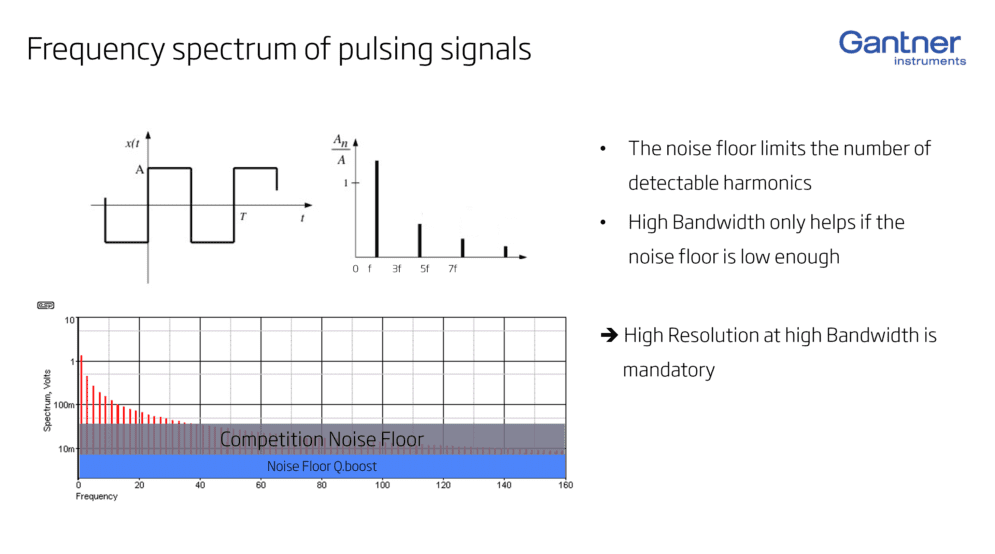

• Accurate measurements - The low noise floor and minimal total harmonic distortion ensure that the Q.boost Power Analyzer delivers highly accurate voltage, current, and power quality measurements.
• Streamlined testing process - The built-in bipolar power supply system for current transducers eliminates the need for additional power supply systems and wiring, simplifying the testing and measurement process.
• Versatile inputs - The analyzer supports various current transducer inputs, offering flexibility in choosing the right sensors for the application.
• Comprehensive power quality analysis - The Q.boost Power Analyzer is designed to measure and analyze critical power quality parameters, such as harmonics, interharmonics, voltage fluctuations, transient disturbances, unbalance, and power factor, helping engineers identify and mitigate potential issues in automotive power systems.

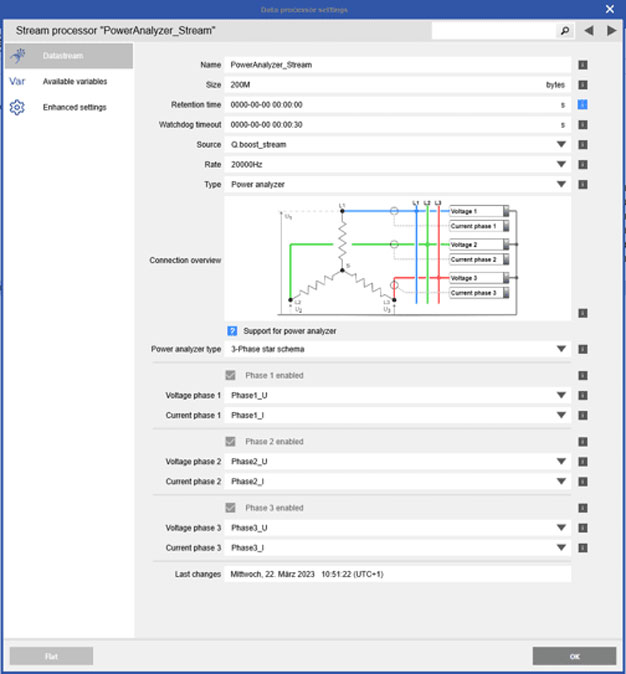

• User-friendly interface - GI.bench offers an intuitive interface, making it easy to configure and manage Q.series X systems.
• Comprehensive data management - GI.bench allows users to visualize, analyze, and store acquired data for further processing and reporting.
• Open API - GI.connectivity provides an open API, allowing for easy integration with third-party software and various Fieldbus interfaces such as CAN, EtherCAT, and PROFINET.
