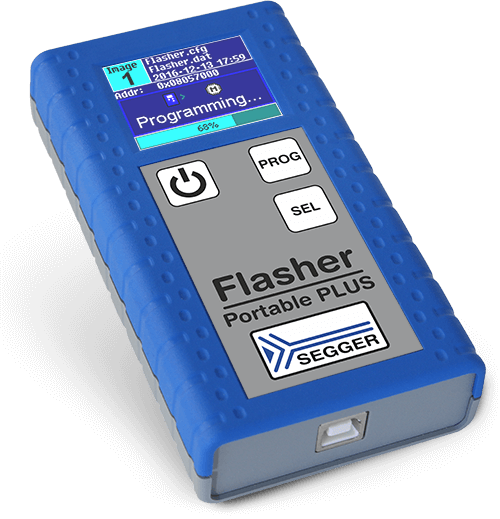

  Flasher Portable PLUS — The Mobile Flash Programmer
  • Stand-alone in-circuit-programmer (Once set up, Flasher can be controlled without the use of a PC program)
  • Powered by internal battery rechargeable Li-Ion 680mAh, no external power supply required
  • Full insights with the new 1.8 inch display
  • Up to 10 hours programming with one battery charge
  • Supports having up to 16 configurations/data files being stored on Flasher
  • Push button allows easy selection between multiple images/configurations stored on Flasher
  • 128 MB internal memory for configuration and data file storage
  Flasher Portable PLUS - The Mobile Flash Programmer
  • Supports ARM, Cortex, PowerPC and Renesas RX cores.
  • Supports internal and external flash devices
  • Data files can be updated via mass storage or via J-Flash
  • Target interface: JTAG / SWD / FINE / SPD
  • Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself
  • SECURITY: Flasher Portable and Flasher Portable PLUS support Authorized Flashing . It allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production
About Flasher Portable PLUS



Flasher Portable PLUS is the handheld stand-alone Flash Programmer for microcontrollers with on-chip and external flash memory. It is battery driven, designed to meet the need for an extremely portable, production-grade flash programmer for in-field firmware updates.

Flasher Portable PLUS can be powered by its internal rechargeable battery or USB. It has an integrated display for reviewing firmware and programming status.

Initial setup/preparation for stand-alone mode operation is done via the same J-Flash software used by other Flasher models and runs on Windows, Linux and macOS.

Flasher Portable PLUS allows up to 16 configurations/image files to be stored on the Flasher, so one unit can be used for different targets, versions or configurations. Proper image selection is done by simply clicking a button. The currently selected image is displayed.

Isolators to electronically isolate (galvanic isolation) the Flasher Portable PLUS from the power supply or the target, and adapters for all common connectors, are available for the Flasher Portable PLUS. Each Flasher includes the licenses to program all supported MCUs.

Resources


  • User Manual
  • Downloads
  • Update Notification
  • Pricing
  • Support
  • Silicon Vendor Resources



Flasher Portable PLUS Specifications
Power Supply Via internal lithium-ion rechargeable battery (Sony US14500VR) or USB
Charging via USB 70 minutes (at 1A charging current)
USB Host Interface 3 USB2.0 (Full-Speed), USB Type B
Target Interface Standard 20-pin J-Link target connector (optional Evaluation Board and Development Kits
  • Industrial Automation Solutions
  • Nvidia Solutions
  • Protocol Analyzers and Storage Emulators
  • RTOS and Middleware
  • Semiconductor Components
  • Simulation Driven System Modelling Tools
  • Software Quality Tools
  • Test and Measuring Instruments
  • /debug-probes/j-link/accessories/adapters/overview/">adapters available)
    Max. target cable length Recommended (delivered): 20cm (8") Max. 2m (6.5") allowed but might reduce max. target interface speed.
    Serial Transfer Rate between Flasher Portable and Target Up to 15MHz
    Supported Target Voltage 1.2 - 5V
    Current drawn from target voltage sense pin (VTRef) < 25µA
    Target supply voltage 4.5V max. (depends on current battery voltage)
    Target supply current Max. 400mA
    Operating Temperature + 5 °C ... + 60 °C (Normal operation) + 5 °C ... + 45 °C (Battery charging)
    Storage Temperature - 20 °C ... + 45 °C
    Relative Humidity (non-condensing) < 90% rH
    Size (without cables) 126mm x 70mm x 28mm
    Weight (without cables) 140g
    Supported OS Microsoft Windows (x86/x64), Linux (x86/x64/Arm), macOS (x86/Apple M1)




    Supported Devices

    SEGGER Flashers support a wide range of CPU cores and an even wider range of different devices, such as SPI-Flash devices. This includes over 50 manufacturers, hundreds of devices, and thousands of device families.

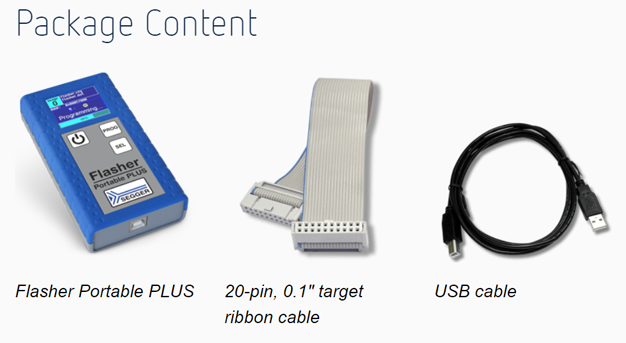

      SEGGER Flashers Supported Device Package Content
