Other Meters

In order to provide customers with a complete “one stop shopping” solution, GW Instek also offers many other special test and measurement instruments for different applications. For power related measurement, bench-top GPM-8212 Digital A.C. power mete is suitable for middle to high-end applications. If you need to measure the impedance of material components, the GOM-800 series D.C. milli-ohm meter is your ideal tool. As for audio signals related measurements, GW Instek provides GAD-201G automatic distortion meter and GVT-417B/GVT-427B A.C. millivolt meters. We also supply several models of the GFC-8000 series frequency counters with ranges of 2.7GHz, 1.3GHz and 120MHz. Other special application instruments such as digital IC tester and logic probe (pulser included) are also available.

Precision Current Shunt Meter
PCS-1000I
Features
  • 6 1/2 digit voltage and current measurement resolution
  • Simultaneous current and voltage measurement
  • Five current measurement levels (AC&DC): 30mA/ 300mA/ 3A/ 30A/ 300A
  • AC voltage measurement levels: 200mV/ 2V/ 20V/ 200V/ 600V
  • DC voltage measurement levels: 200mV/ 2V/ 20V/ 200V/ 1000V
PCS-1000I Isolated Output High Precision Current Shunt Meter
  • Standard: USB& GPIB
    CE verification



  Learn More   Sales Enquiry Scroll Top
Digital IC Testers
GUT-6000B
  GUT-6000B Digital IC Tester   Features
  • Loop Test
  • Auto-Search
  • Self-Diagnosis
  • Over-Load Protection
  • Measures 1800 Kinds of Device
  • 54/74 Series TTL
  • 4000 and 4500 Series CMOS
  • Test Socket: 28 Pin

  Learn More   Sales Enquiry Scroll Top

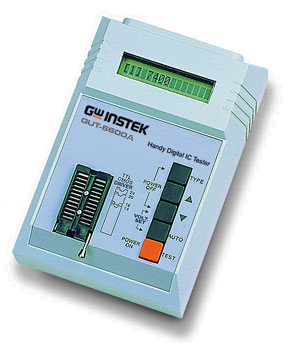

GUT-6600A
Features
  • Easy-Operating Tester, Particularly be Designed for the Digital IC
  • Supported Device:74/54/40/45 Serial, Drive 2xxx
  • Small, Portable, Light and Power-Saving, Usable With Battery
  • Average Search Time: 0.6 Second
  • Display: 16 Characters in 1 Line LCD
  • Test Pins: 14~24 Pins
GUT-6600A Handy Digital IC Tester
  Learn More   Sales Enquiry Scroll Top
AC Power Meters
GPM-8310 Digital Power Meter
GPM-8310 Digital Power Meter    Features
  • 5”TFT LCD
  • DC, 0.1Hz ~ 100kHz voltage/current test bandwidth

  • Two numerical display modes: General mode: displays 2 main test items + 8 secondary test items ; Simple mode: displays the test values of 4 main test items
  • Waveform display: V (voltage), I (current), P (power)
  • The current/voltage can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A
  • 50th order of harmonic measurement and analysis (value and bar graph)
  • Integration function supports automatic level-changing
  • External current sensor input terminals (EXT1/EXT2)
  • Standard interfaces: RS-232C, USB device/ host, LAN, GPIB
  • Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)
  • Optional accessory: GPM-001

  Learn More   Sales Enquiry Scroll Top
GPM-8213 AC Power Meter
Features
  • Two data display modes
  • Standard : two major measurement items + six secondary measurement items
  • Simple : displaying test data of four different measurement items
GPM-8213 AC Power Meter

  • Met the SPECpower measurement requirement
  • Met the requirement of IEC 62301 power measurement
  • Watt resolution : 1mW
  • Lowest current range : 5mA, resolution : 0.1uA
  • Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
  • W-h (power vs time)/A-h (current vs time) integration function
  • Total harmonic distortion measurement

  Learn More   Sales Enquiry Scroll Top
Automatic Distortion Meters
GAD-201G
GAD-201G Automatic Distortion Meter Features
  • Automatic level & distortion measurements
  • Auto or Hold function selectable
  • 0.1% ~ 100% in 7 distortion measuring ranges
  • 20Hz ~ 20kHz in 3 continuous ranges
  • 400Hz, 1kHz, 10kHz 3 frequency spots
  • 1mVrms ~ 300Vrms in 12 ACV measuring ranges
  Learn More   Sales Enquiry Scroll Top
AC Millvolt Meters
GVT-427B & GVT-417B
Features
  • 300μV Full Scale Sensitivity
  • Measurement Frequency: 10Hz ~ 1MHz
  • Measurement Amplitude: -70dB ~ +40dB in 12 Ranges
  • Dual Channel (GVT-427B)
  • CE Approved (GVT-417B)
GVT-427B & GVT-417B AC Millivolt Meter
  Learn More   Sales Enquiry Scroll Top
Frequency Counter
GFC-8270H & GFC-8131H
GFC-8270H & GFC-8131H Intelligent Counter
  • Microprocessor Controlled Intelligent Counter(only GFC-8270H)
Features
  • Frequency and Period Measurement
  • High Resolution at Both High and Low Frequency
  • 0.01Hz~2.7GHz Frequency Range(GFC-8270H)
  • 0.01Hz~1.3GHz Frequency Range(GFC-8131H)
  • 10mV rms High Sensitivity
  • 100nHz Resolution for 1Hz Input
  • Variable Trigger Level Control
  Learn More   Sales Enquiry Scroll Top
Logic Probe & Pulser
GLP-1A
GLP-1A Logic Probe & Pulser
  • Pulser: Sync input impedance 120kΩ
  • Pulse Repetition Rate: Switchable 0.5/400Hz
  • Pulse width: 10μsec
  • Dimensions & Weight: 18(W)x210(H)x18(D)mm, Approx. 50g
Features
  • Combining a Logic Probe and Pulser Combined into One
  • Probe for Troubleshooting Digital Circuits
  • Operating Voltage: 4VDC ~ 18VDC
  • Maximum Input Signal Frequency: 50MHz
  • TTL: Logic “1”>3.0V�0.25V, Logic”0”<0.75�0.25V
  • CMOS: Logic “1”>60%VCC�5%, Logic”0”<15%VCC�5%
  • Minimum Detectable Pulse Width: 10nsec
  • Pulser: Sync input impedance 120kΩ
  Learn More   Sales Enquiry Scroll Top
