TOELLNER offers flexible solutions for on-board network
simulation and testing of components, e.g. for the
automotive and avionics industries. The Software
WaveControl provides waveforms and
controls the TOELLNER system components at the test
station, which can be individually tailored to your
requirements. Using a DAQ-Card, any signal waveform can
be provided with Arbitrary Power
Supplies or 4-Quadrant Amplifiers with outputs from 160
W to 5200 W. For fast interruptions,
TOELLNER offers electronic switches with switching times
below 500 ns.

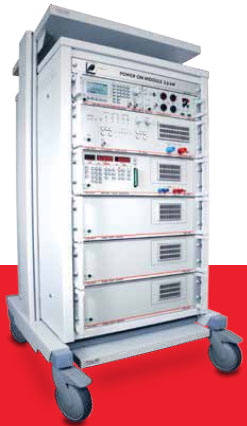

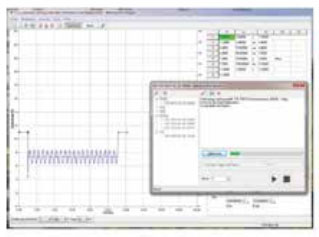

WaveControl Software includes a comprehensive library of
waveforms supporting these standardized automotive
industry tests: |
|
|
|
|
|
 |
|
The Software WaveControl
provides
-
Extensive Waveform Libraries for Normative Tests, e.g.
- LV 124, LV 148
- VDA 320
- VW 80000-1
- VW 82148
- GMW 3172
- MBN 10615
- ISO 16750-2
- BMW GS 95024-2-1
- BMW GS 95026
-
Import & Export of recorded Data
-
Visual Generation of individual Waveforms
-
Sequence Controlling and Timing
|
|
|
| |
|
|
|
- Electronic Switch for short interruptions up to 60V / 100A; tr / tf < 500 ns
- 4-Quadrant-Power-Supply up to ± 100 V / ± 40A; > 100 kHz, 320W / 1kW,
modularly
expandable up to 6,4 kW / 20 kW
- Arbitrary Power Supply up to 100 V / 320 A, AC-superimposition up to 70 kHz,
320 W /
1 kW up to 5.2 kW / 16 kW
- Software to create arbitrary waveforms, an extensive library of normative
waveforms
included
- All instruments can also be used individually
|
|
 |
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
