We are excited to introduce
XJTAG Boundary Scan Solutions, a
comprehensive and powerful testing,
debugging, and programming solution
designed to meet the demanding needs
of complex circuit boards.
XJTAG’s advanced boundary
scan technology provides enhanced test
coverage and faster fault diagnosis,
helping you improve product quality,
reduce development time, and lower
manufacturing costs.
Whether you're in the
design, prototyping,
manufacturing, or repair phase,
XJTAG has the tools to
streamline your workflow and
maximize efficiency at every
step.
|
|
| |
|
|
|
|
Key Features of XJTAG Boundary Scan
Solutions |
|
| |
|
|
|
|
|
1. Comprehensive PCBA
Testing
XJTAG offers a suite of
powerful tools to verify the
functionality and integrity of your
printed circuit boards (PCBs). You can
effectively test both JTAG and non-JTAG
devices on the board, ensuring you catch
faults early in the design cycle. |
|
 |
|
|
|
|
|
|
 |
Fault Diagnosis for BGA/PCBA:
XJTAG allows you to test BGAs
and other devices that are
typically difficult to access
with traditional methods. |
|
|
Rapid Prototype Bring-up:
Get your prototypes up and
running quickly with automated
test setups, even before the
firmware is fully developed. |
|
|
In-Circuit Programming:
Program devices in-system,
including flash memory, FPGA,
and CPLD devices, without the
need for external programmers. |
|
|
|
|
2.
Increased Productivity with
Automated Tools
XJTAG
minimizes manual work and
accelerates time-to-market by
automating several testing and
programming tasks.
|
|
Automated Test Setup:
Save time with a library of
ready-to-use test scripts for
thousands of devices. Reuse test
scripts across multiple projects
to reduce development time. |
|
|
|
|
3.
Cost-effective Manufacturing Test
Solutions
Incorporate boundary scan into your
manufacturing process to save on
test fixtures and reduce operational
costs.
|
|
Integrated Test and
Programming: Use XJRunner
for production testing and
XJFlash for high-speed in-system
programming of flash devices. |
|
|
| |
4.
Streamlined Repair and Fault Finding
XJTAG’s boundary scan technology
allows you to diagnose faults on
multi-layer boards, pinpointing
issues that may be missed by
traditional methods.
|
|
XJTAG No Need for
Firmware: Test and debug BGA
pins and embedded nets in real
time without the need for
programming or booting the
devices on the board. |
|
|
Quick and Accurate Fault
Isolation: With XJAnalyser,
you can visualize the status of
your JTAG chain, track the
behavior of pins, and even
simulate different pin states
without needing access to the
firmware. |
|
|
|
|
Flexible Software Solutions for board
testing and programming |
|
| |
|
|
| |
|
|
XJDeveloper Plus: A
complete development environment
for test and programming
projects. Create and execute
sophisticated tests, and get
powerful coverage reports to
ensure that your boards pass
every test.
|
|
 |
|
|
| |
|
|
XJRunner: A
production-ready testing and
programming platform that allows
you to automate your
manufacturing tests and
seamlessly integrate them into
your production line. |
|
|
XJAnalyser: Real-time
graphical board debugging that
lets you control pin states and
view the JTAG chain's waveform
data to quickly find any issues. |
|
|

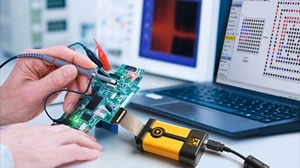

XJLink2/ XJLink-PF20:
These are small, portable, USB
hardware device that provide a
high speed interface to the JTAG
chain on a circuit board.
|
|
|
| |
|
|
|
|
Why Choose XJTAG? |
|
| |
|
|
| |
|
|
A High Test Coverage:
XJTAG ensures comprehensive test
coverage for both JTAG and non-JTAG
devices on your board, helping
identify issues early in the
design and production phases. |
|
|
Precise Diagnostics:
Easily isolate faults down to
the pin level, speeding up
repairs and reducing costly
downtime. |
|
|
Cost-Effective: Save
time and money with XJTAG’s
automated tests, ready-to-use
test files, and easy integration
into existing workflows. |
|
|
Flexible and Scalable:
Whether you're a small-scale
prototyping shop or a
large-scale manufacturer, XJTAG
provides the flexibility to
scale your testing operations
efficiently. |
|
|
| |
|
|
|
|
XJTAG Flash Programmers |
|
| |
|
|
| |
|
|
XJExpress: Standalone
SPI Flash Programmer for
Development & Manufacture.
User-friendly interface
optimized for production
environments. Fully configurable
erase, program, and verify
cycles, Support for SPI NOR
flash devices, serial, dual, and
quad modes. Multi-image
programming capability.
|
|
|
XJExpress –FPGA:
Easy-to-use and fully
configurable, support for FPGAs/SoCs
from major manufacturers,
multi-image programming
capability. |
|
|
Real-time XJLink-FE18
Controller: It is a USB
based programming controller
used to link your PC to the
target flash device. It is
capable of programming over
Single, Dual, Quad and Octal SPI. |
|
|
| |
