Teledyne LeCroy, the
world leader in protocol test solutions, offer The Eclipse MIPI
M-PHY protocol analyzer platform which monitors, captures,
decodes and analyzes protocol traffic from multiple interfaces
such as SSIC, M-PCIe, and UniPort/UFS. Highly portable and
configurable, the Teledyne LeCroy Eclipse X34 M-PHY protocol
analyzer platform can be upgraded to fit individual requirements
and budgets.
Teledyne LeCroy is a leading provider of Protocol Analyzers and
Storage Emulators, exercisers/emulators, jammers and
verification tools for existing and emerging digital
communications standards. Designed to generate, capture, and
analyze high-speed communications traffic, Teledyne LeCroy's
tools help developers to discover and correct persistent and
intermittent errors and flaws in their product design.
Eclipse
X34 – The only MIPI M-PHY solution you need!
One Analyzer – Multiple Protocols
Smallest Footprint Available
Supporting Uniport, UFS, SSIC, and MPCIe protocols
for x1 – x4 Lanes @ G1/G2/G3 Speeds in one
platform gives you the flexibility to tackle any
of your applications.
With long probe cables and weighing in at under
3lbs you can easily take the Eclipse X34
anywhere your mobile applications go.
Deepest Recording Depth
Up to 32 GB of available memory in a
single unit (double that to 64 GB with a
2nd unit) allows you to accurately capture 100% of
your data.
Most Robust Probing
At < 50ns signal lock times our selection of
SMA,
Multi-lead, Mid-bus, and M.2 Interposer probes
will give you all of the power you need to capture
even the critical sleep/stall/hibernate traffic.

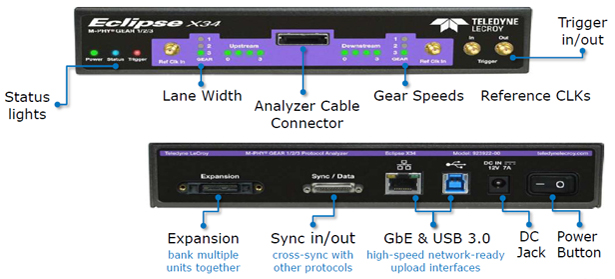

Eclipse X34
Hardware

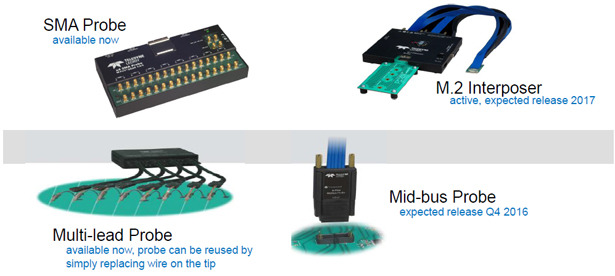

Probing
Options for Eclipse X34
Intelligent
Software Design
The Brains Behind the Brawn
Intuitive Protocol Views
Based on the maturity of decades of
software development our family of M-PHY
Protocol Suites deliver the smartest set of
tools available in the market.
With our comprehensive decoding and signature
Logical View we give you complete access to
the Upper Layers all the way down to the
finest detail of your traffic including: Frame
Fragments, Preempted Packets, QoS, Deskew, Head of
Burst, TRG-X, etc.
Auto Detect Link Speed
Dynamic capture of speed changes from Low Speed
to High Speed Gear 1-3 makes sure that you see
every link shift.
Precision Triggering
Locating the difficult frames and transitions,
like RRAP & PCAP Packets, Pattern Matches, or Link
States (DIF-N, DIF-P, Hibnern8 DIF-Z), can quickly
point you to the root causes and ultimately….the
solutions to your issues!
