ARM Development boards are the ideal platform for accelerating the development and reducing the risk of new SOC designs. The combination of ASIC and FPGA technology in ARM boards delivers an optimal solution in terms of speed, accuracy, flexibility and cost.

ARM development boards are often used to:

  • Evaluate, benchmark and start software development on the latest ARM processors
  • Prototype, validate and develop software drivers for new SoC IP blocks - for example, a modem or video engine
  • Test custom logic blocks or system IP in an FPGA, connected to an ARM core running at ASIC speed

Key Features:

  • Support for a wide range of ARM processors from deeply embedded to multimedia applications
  • Large system memory and rich set of peripheral interfaces: Ethernet, USB, LCD, UART and more
  • Full CoreSight debug and trace
  • Linux distributions for early development of driver and application software
  • User documentation, FPGA example code, example firmware and expert technical support



Family ARM CPU CORE Versatile™ Express Versatile KEIL mbed


APP


Cortex™-A15 MPCore
Cortex-A9 MPCore
Cortex-A8
Cortex-A7
Cortex-A5 MPCore
Embedded Cortex-R5 MPCore
Cortex-R7 MPCore
Cortex-M4
Cortex-M3
Cortex-M0
Classic ARM11™ MPCore
ARM1176JZF-S™
ARM1136JF-S™
ARM1156T2-S™
ARM968E-S™
ARM966E-S™
ARM926EJ-S™
ARM7TDMI™




Key:
Hard silicon CPU core
Soft FPGA-based CPU core

For development with standard (off-the-shelf) ARM-based microcontroller parts, Keil offers a large range of evaluation boards with Cortex-M3, ARM7 and ARM9 support.







  Versatile Express


The Versatile™ Express family of development platforms provides the right environment for prototyping the next generation of system-on-chip designs. Thanks to its flexible, modular architecture, and high-speed interfaces, hardware and software applications can be developed and debugged quickly and efficiently.

Building a development system from ARM Versatile Express boards minimizes project setup time and allows the developer to concentrate on the task in hand - testing and validating the product IP and software, rather than designing and debugging the development system.

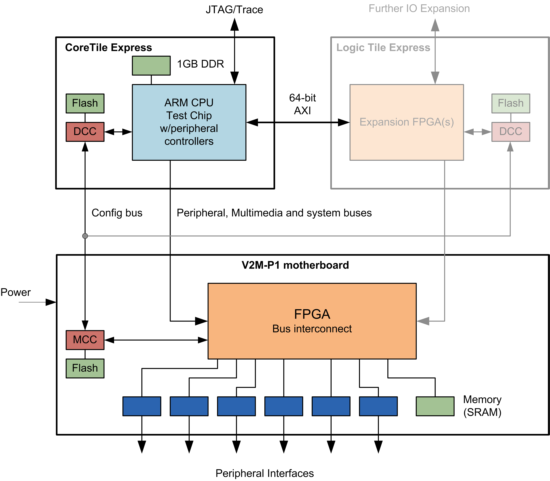

Versatile Express features a brand new bus architecture that improves bus/memory throughput over previous ARM development board families. The ARM Test Chip AMBA® AXI™ buses are directly connected to the user expansion FPGA, giving greater architectural accuracy and minimizing bus latency.

Versatile Express Motherboard

The Motherboard Express uATX has been especially designed to support future generations of ARM processors. It includes all the necessary peripherals that enable you to port, prove, and develop operating systems and applications for new processors and graphics engines. Through a range of plug-in daughterboards, hardware and software applications can be developed and debugged.

Versatile Express CoreTile

The CoreTile Express daughterboard is used together with the Motherboard Express µATX for evaluation, benchmarking and prototyping with the Cortex™-A15, Cortex-A9, Cortex-A7 and Cortex-A5 processors. The on-board DDR2 SDRAM and CoreLink LCD controller enhance system throughput.

Versatile Express Soft Macrocell

Models Modelsof development platforms provides the right environment for prototyping the next generation of system-on-chip designs. Thanks to its flexible, modular architecture, and high-speed interfaces, hardware and software applications can be developed and debugged quickly and efficiently.

Versatile Express LogicTiles

LogicTiles provide custom logic expansion capability for the Versatile Express system. They enable peripheral prototyping, validation and software device driver development alongside an ARM processor - prior to the SoC returning from the foundry. This reduces the risks and bring-up time of the product by having tested IP and software device drivers ready. A choice of boards with different sized FPGAs and stacking capabilities enables the IP developer to construct a development system that matches project requirements.






  Cortex-M Prototyping System




The Cortex-M Prototyping System (or MPS2) is designed for prototyping and evaluation Cortex-M family of processors including the latest Cortex-M7. It is an affordable motherboard available as part of the Versatile Express range of development boards. It boasts a choice of two FPGAs for prototyping Cortex-M based designs and a range of different debug options. It comes with a range of useful peripherals including PSRAM, Ethernet, touch screen, Audio, VGA, SPI and GPIO. It comes provided with fixed encrypted FPGA implementations of all the Cortex-M processors.

The product supports Cortex-M0 Design Start and includes an example design with CMSDK peripherals which the user can use in their design. It is an ideal platform for the evaluation and FPGA prototyping of Cortex-M based designs.
