  SEGGER Embedded Studio


Embedded Studio is a complete all-in-one solution for managing, building, testing and deploying your embedded applications: From the Project Generator which gets you easily started with common ARM microcontrollers, to the powerful Project Manager and source code Editor, the included C/C++ Compiler and the integrated Debugger with advanced debug information windows and direct J-Link integration, right through to version control features for automatic deployment of your applications.




  This short video helps you in getting started with the SEGGER Embedded Studio and explain its salient features.







  SEGGER Embedded Studio PRO





Embedded Studio PRO is an all-in-one embedded development package. It includes a powerful integrated development environment (Embedded Studio), a complete embedded software suite (RTOS, GUI, USB-Device, USB-Host, TCP/IP, File System), the industry leading J-Link PLUS debug probe, and a Cortex-M based emPower development board. This streamlined package works out-of-the-box. Start programming your application immediately and rely on The Embedded Experts to answer any questions during your development.

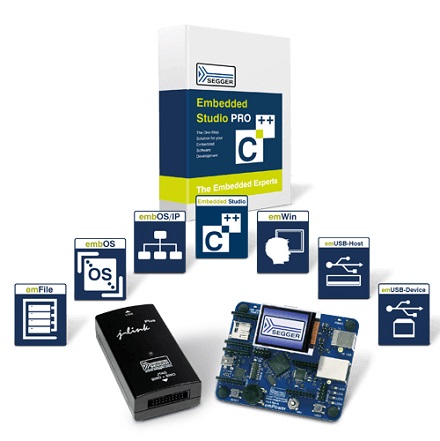

Components of Embedded Studio PRO package Embedded Studio PRO is an all-in-one embedded development package. It includes a powerful integrated development environment (Embedded Studio), a complete embedded software suite (RTOS embOS, GUI emWin, USB emUSB-Device and -Host, TCP/IP embOS/IP, File System emFile), the industry leading J-Link PLUS debug probe, and a Cortex-M based emPower development board which is based on a Kinetis K60 eval board.

This streamlined package works out-of-the-box and is shipped in object code. Start programming your application immediately and rely on The Embedded Experts to answer any questions during your development. It Simply Works!





  This short video helps you in getting started with the SEGGER Embedded Studio and explain its salient features.






  System View



SEGGER SystemView is a real-time recording and visualization tool for embedded systems that reveals the true runtime behavior of an application, going far deeper than the system insights provided by debuggers. This is particularly effective when developing and working with complex embedded systems comprising multiple threads and interrupts: SystemView can ensure a system performs as designed, can track down inefficiencies, and show unintended interactions and resource conflicts, with a focus on details of every single system ticks.

SystemView can record data from the embedded target system while it is running. The recorded data is analyzed and the system behavior is visualized in different views.

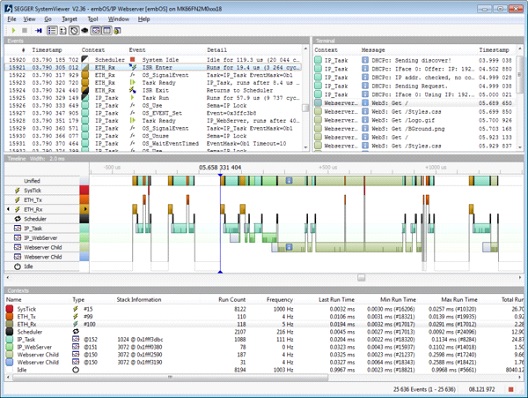

All system information is sent by the application and is part of the recording. The information is shown in the window on the top right and includes the application name, the underlying OS, the target device and the timing information. Additional information about task switches and interrupt frequency provide a quick overview of the embedded system.


With the Timeline and the Events window the whole system execution can be visually analyzed.








SystemView-Analyzing System Data


  • Minimally system intrusive
  • Free tool. No license cost, no hidden fees
  • RTOS task, resource, and API tracing
  • Interrupt tracing for bare metal systems without an RTOS
  • Continuous real-time recording and live analysis with J-Link and SEGGER RTT technology
  • Live analysis of captured data - view responses to stimuli in real time without stopping the target
  • SEGGER embOS, embOS/IP, and emFile API call tracing as standard
  • uC/OS-III, Micrium OS Kernel, and FreeRTOS instrumentation included
  • Can be adapted to other RTOS using a fully documented API
  • Works on any CPU
  • Tracking of unlimited number of events (SystemView PROonly)







  System View PRO



SystemView PRO extends the capabilities of the free tool SystemView. It does not only enable unlimited recording of events, but unlocks more powerful means of complete system analysis.

Unlimited Recording

The free version of SystemView is limited to recording and analyzing one million events. SystemView PRO lifts the one million event limitation and enables Unlimited Recording.

While it is usually sufficient to record several seconds or even minutes of a system and capture all important events, it can be helpful to run long-time tests on a system to verify if it behaves as expected.

Some timing related issues might only occur after hours of system up-time. With SystemView's Post-Mortem Mode the last events before such an issue happens can be stored, but it might be necessary to scroll back further in time and see more of the system activity.

Unlimited Recording provides full statistics of all contexts in long-time tests and allows a complete analysis of the system from startup up to the occurrence of any issue.

In addition to save the whole recording, SystemView PRO also features extraction of interesting parts to be saved separately for documentation or later analysis.







SystemView-Analyzing System Data


  • Minimally system intrusive
  • Free tool. No license cost, no hidden fees
  • RTOS task, resource, and API tracing
  • Interrupt tracing for bare metal systems without an RTOS
  • Continuous real-time recording and live analysis with J-Link and SEGGER RTT technology
  • Live analysis of captured data - view responses to stimuli in real time without stopping the target
  • SEGGER embOS, embOS/IP, and emFile API call tracing as standard
  • uC/OS-III, Micrium OS Kernel, and FreeRTOS instrumentation included
  • Can be adapted to other RTOS using a fully documented API
  • Works on any CPU
  • Tracking of unlimited number of events (SystemView PRO only)
